Product Details:
|
| Name: | Digital Readout For Sale | Keyword: | Digital Readout Kit |
|---|---|---|---|
| Weight: | 3kg | Material: | Aluminum |
| Display Resolution: | 0.1µm, 0.5µm, 1µm, 5µm | Warranty: | 13 Months |
| Power Supply: | 110V / 220V | Input Signal: | TTL |
| High Light: | LCD Display Digital Readout System,Machine Tools Digital Readout System,lcd Digital Readouts |
||

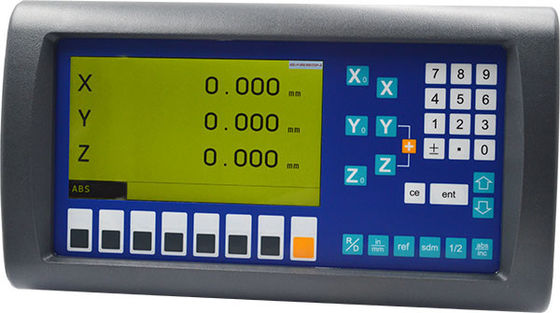

ES-8C Full Options Machine Tools LCD Display Digital Readout System
Overview
Details
| Brand: Easson | Output Signal: TTL(A Qual B) |
| Model: ES-8C | Application: Mill, Lathe, Grinder, Boring, Wire cut |
| Power Supply: 110 - 220V | Display resolution: 0.1 μm, 0.5 μm, 5μm, 1μm |
| Power cable: 3 meters | Power consumption: 20VA |
Packaging & Delivery
Single package size: 40x26x18 cm
Package Type: Carton
Gross weight: 4 kgs
Delivery:
| Quantity | 1-10 | 11-50 | 51-100 | ＞100 |
| Est. Time ( days ) | 7 | 7 | 15 | To be negotiated |
Easson LCD Three Axis Aluminum Case Digital Readout DRO for Lathe, Milling, Grinder machine
Technical Specification
| Model Number | ES-8C | ||
| Axis number | Three Axis | ||
| Axis Display | 0.1μm, 0.5μm, 1μm, 5μm | ||
| Signal Input | A / B quadrature signal | ||
| Power Supply | 110 Voltage - 220 Voltage | ||
| Weight (kg) | 2.5 | ||
|
Maximum input |
2 MB Hz | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||
| Inputs | 2 or 3 linear encoders | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
||
Products Description
Digital Readout System
Basic parameter in the ES-8C is included as below:
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Build in Calculator |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| Smooth “R” Function |
| Linear Error Compensation |
| Non Linear Error Compensation |
| Z Axis Summation |
| Axis Speed Display |
| Bluetooth Function ( Optional ) |
| Power Failure Position Function ( Only work with Easson Absolute linear Scale) |
Connector interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| TTL Signal | --- | 0V | --- | GND | --- | A | 5V | B | R |
| Cable | --- | Orange | --- | Ground | --- | Yellow | Red | Green | Brown |
FAQ
1. Q: What's your factory mainly produce?
A: Easson mainly produce CNC Vision Measuring System, Optical Profile Projector, Digital Readouts(DRO), Linear encoder grating ruler, CNC linear encoder.
2. Q: What mainly features did your counter has?
3. Q: What about the products warranty?
A: 13 months from the date of shipment.
4. Q: Delivery time
A: Sea freight order normally is 30 days after receive the order comfirmation, small quantity for air freight is available to ship anytime.
5. Q: Payment term
A: Normal accept 100% T/T payment, for others payment terms, welcome to contact us.
