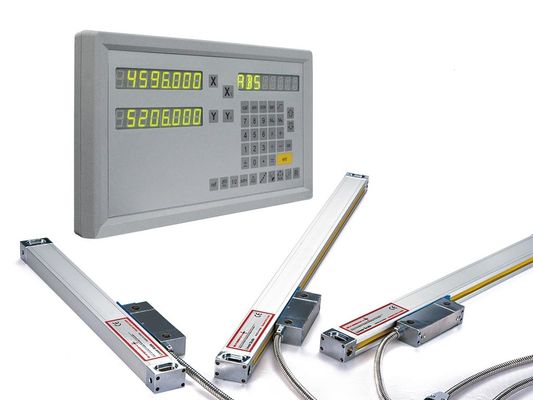

2 Axis Glass Scale Dro Digital Readout System For Bridgeport Mill Lathe
Product Introduction
The EA-926 is one of the all in one function readout system series. It is a practical, multifunctional optical Ruler digital display launch in 2020 year.
The design focus is to maintain the full function and high quality, and try to use the most reasonable solution reducing the price, facing the practical market.
The Autotex is used as the key membrance of EA series, it offers excellent chemical resistance to most commonly used industry solvent and excellent switch life, switch life of expected to be 100,000 times.
Ultra Low Temperature Rise Transformer
Easson all Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC.
To reduce the total heat generation inside the DRO in order to obtain long working life. An ultra low temperature rise transformer that construct with very high permeability icron core is used, which effectively bring temperature rise to only about 5℃.
EMC Testing equipment
To Make sure all Easson DRO products can be pass the standard EMC standard specification, we have a complete set of EMC test esd immunity tester equipment for testing the EMC.
Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:
1. IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
2. IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
3. IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )
Technical Specification
| Model Name | EA-926 | ||
| Axis number | 2 Axis | ||
| Axis Display | 0.1μm, 0.5μm, 1μm, 5μm | ||
| Signal Input | TTL | ||
| Voltage Range | AC 110 V - 220 V | ||
| Net Weight | 2 kgs | ||
|
Input frequency |
2 MB Hz | ||
| Operation Keyboard | Light touch buttons | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||
| Inputs | 2 glass scales | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
||
Basic parameter is included as below:
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Zero |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| Smooth “R” Function |
| Linear Error Compensation |
| Non Linear Error Compensation |
| INCL Function |
| Axis Speed Display |
ES series DRO advanced Functions: Non-linear error compensation
Advanced functions for Milling machine
Connector interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| TTL Signal | --- | 0V | --- | GND | --- | A | 5V | B | R |
| Cable | --- | Orange | --- | Ground | --- | Yellow | Red | Green | Brown |
