Product Details:
|
| Application: | Milling, Lathe, Grinder | Languages: | 20 Options |
|---|---|---|---|
| Display Resolution: | 0.1µm, 0.5µm, 1µm, 5µm | LCD Screen: | 7 Inch |
| Power Supply: | 110V / 220V | Output Signal: | TTL |
| High Light: | Bridgeport Mill Dro,Mill Dro 3 Axis,ES-14B 3 Axis Digital Readouts |
||
Product Introduction

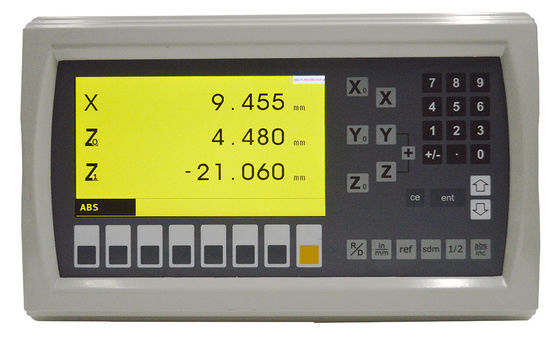

The ES-14B, launched in 2018, has been designed by Easson to supply to the oversea market an "All in one and full options" Digital Readout System. In the ES-14B it is in fact possible to select the required application(Milling, Lathe, Boring, Drilling, Grinder, Wirecut) directly during the DRO setup.
The ES-14B series is CE certified and is manufactured according to the TQM(Total Quality Management System). The electronic boards comply with the RoHS standards.
Technical Specification
| Model Number | ES-14B | ||
| Axis number | Three Axis | ||
| Axis Display | 0.1μm, 0.5μm, 1μm, 5μm | ||
| Signal Input | TTL | ||
| Power Supply | 110 V - 220 V | ||
| Weight (kg) | 3.5 | ||
|
Maximum input |
2 MB Hz | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||
| Inputs | 3 Optical Linear Scale | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
||
EMC Testing equipment
To Ensure all Easson Digital Readout products can be pass the standard EMC specification, we have a complete set of EMC test esd immunity tester to test it.
Products Description
Digital Readout System
Basic parameter in the ES-14B is included as below:
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Build in Calculator |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| Smooth “R” Function |
| Linear Error Compensation |
| Non Linear Error Compensation |
| Z Axis Summation |
| Axis Speed Display |
| Bluetooth Function ( Optional ) |
| Power Failure Position Function ( Only work with Easson Absolute linear Scale) |
ES-14B is an all in one and full options DRO which have specific functions which are very important to machine retrofitting, such as Non linear compensation, Axis speed display... and many others important features that make it the ideal solution for retrofitting to many different type of machine tools.
Easson Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC. To reduce the total heat generation inside the ES DRO in order to obtain long working life. An ultra low temperature rise transformer that construct with very high permeability icron core is used, which effectively bring temperature rise to only about 5℃.
Connector interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| TTL Signal | --- | 0V | --- | GND | --- | A | 5V | B | R |
| Cable | --- | Orange | --- | Ground | --- | Yellow | Red | Green | Brown |
