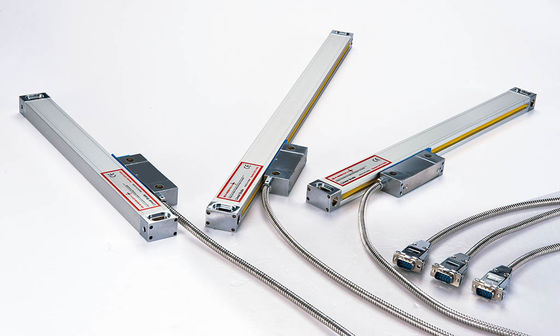

Product Description:
The Optical Linear Encoders product offers a reliable and efficient solution for various applications requiring precise linear measurements. With a voltage requirement of DC5V, this product ensures compatibility with standard power sources, making it easy to integrate into existing systems.
Designed for accuracy and durability, the Optical Linear Encoders are ideal for applications that demand precise linear scale digital readout systems. Whether used in manufacturing, automation, or other industries, these encoders provide consistent and reliable measurement data, contributing to improved operational efficiency.
The Output Signal flexibility of the Optical Linear Encoders is a key feature that sets them apart. With the option to choose between analog or digital output signals, users can select the signal type that best suits their specific requirements. This versatility ensures seamless integration with different types of control systems and equipment, enhancing the overall functionality of the encoder.

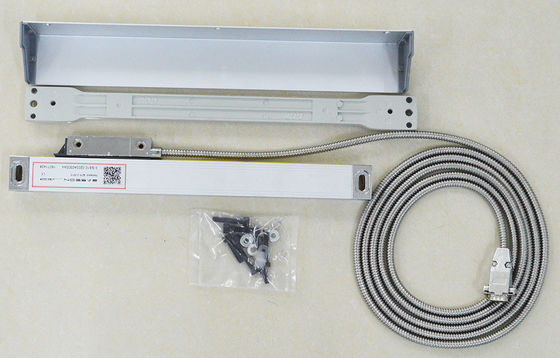

When it comes to installation and compatibility, the Optical Linear Encoders are designed for Linear mounting type. This design simplifies the mounting process and ensures a secure and stable installation, minimizing the risk of misalignment or errors during operation. The linear mounting type also allows for easy adjustments and maintenance, further enhancing the user experience.
For applications that require precise linear measurements, such as those found in glass linear encoder systems, the Optical Linear Encoders offer a reliable and cost-effective solution. By leveraging advanced optical technology, these encoders deliver accurate and consistent measurements, making them suitable for a wide range of industrial applications.
Whether used as standalone components or as part of a larger system, the Optical Linear Encoders provide the accuracy and reliability needed to meet the demands of modern industrial environments. With their incremental optical rotary encoder capabilities, these encoders offer precise measurement data that can be used for positioning, speed control, and other critical functions.
In conclusion, the Optical Linear Encoders are a versatile and dependable solution for applications requiring precise linear measurements.
With features such as a DC5V voltage requirement, 0-50 degrees Celsius operating temperature range, and linear mounting type, these encoders are designed to meet the needs of various industries. Whether used in linear scale digital readout systems or other applications, the Optical Linear Encoders deliver accurate and reliable performance, making them a valuable asset for any industrial setting.
Features:
- Product Name: Optical Linear Encoders
- Protection Class: IP67
- Warranty: 13 Months
- Length: 1300-3000mm
- Encoder Type: Incremental Or Absolute
- Mounting Type: Linear
Technical Parameters:
| Model |
VS20 |
| Display Resolution |
0.1µm, 0.5µm, 1µm, 5µm |
| Length |
1300-3000mm |
| Warranty |
13 Months |
| Voltage |
DC5V |
| Encoder Resolution |
1µm, 5µm |
| Encoder Type |
Incremental Or Absolute |
| Output Signal |
Analog Or Digital |
| Gross Weight |
1.5-12 Kgs |
| Mounting Type |
Linear |
| |
VS10 |
VS11 |
VS12 |
VS13 |
VS20 |
VS21 |
VS22 |
VS23 |
| Measuring Standard |
Glass Scale - Grating period: 20μm (0.02mm) |
| Optical Detecting System |
Transmissive Infrared System: wave length 880mm |
| Slide Carrier System |
Vertical five bearings supporting system |
| Resolution |
5μm |
1μm |
5μm |
1μm |
5μm |
1μm |
5μm |
1μm |
| Measurement Travel |
50-1200mm |
Every 50mm |
Not available |
| 1300-3000mm |
Not available |
Every 100mm |
| Accuracy |
50-450mm |
±3μm - ±5μm |
-- |
| 500-800mm |
±10μm |
±5μm |
±10μm |
±5μm |
-- |
| 1050-2000mm |
±10μm |
±5μm |
±10μm |
±5μm |
-- |
| 1300-3000mm |
-- |
±10μm/m |
| Repeatability |
2μm (0.002mm) |
| Hystersis |
3μm (0.003mm) |
| Protection |
IP 53 |
| Power supply |
DC 5V ± 5% |
| Output Signal |
TTL |
TTL |
422 |
422 |
TTL |
TTL |
422 |
422 |
Applications:
EASSON Optical Linear Encoders, available in models VS10 and VS20, are versatile tools suitable for a variety of application occasions and scenarios. Made in P.R.China, these encoders come with CE certification and have a minimum order quantity of 1 unit.

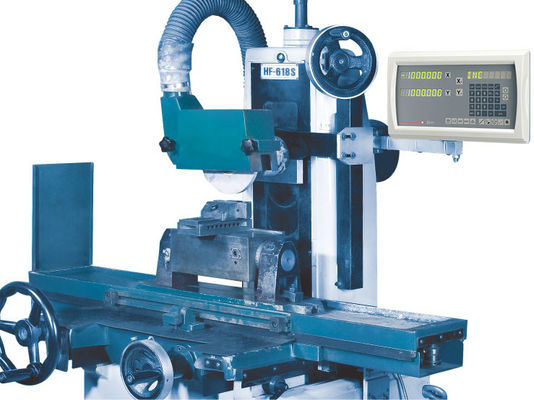

The VS20 model is particularly well-suited for use in mills, lathes, grinders, and drilling machines. With display resolutions ranging from 0.1µm to 5µm, these encoders provide precise measurements for different industrial processes.
Operating at a voltage of DC5V, these encoders offer reliable performance over lengths ranging from 1300mm to 3000mm. The supply ability of 1000 pieces per month ensures consistent availability for your needs.
When it comes to product application scenarios, EASSON Optical Linear Encoders excel in providing accurate feedback for Incremental Encoder applications. Whether you require precise positioning in a milling operation or consistent measurements in a lathe setup, these encoders deliver reliable performance.
The use of Glass Linear Encoder technology ensures durability and accuracy, making EASSON encoders a trusted choice for various industrial applications. The encoders are packaged securely in cartons for shipment, with a delivery time of three to five days once the 100% T/T payment before shipment is processed.
Support and Services:
Our Product Technical Support team for Optical Linear Encoders is dedicated to providing expert assistance with any technical issues or questions you may have. Our team of skilled technicians is available to help troubleshoot and diagnose any problems that may arise, ensuring that your equipment operates at peak performance.
In addition to technical support, we also offer a range of services for our Optical Linear Encoders product line. These services include installation assistance, maintenance and repair services, and product training to help you maximize the performance and longevity of your equipment.
