3 Axis Measuring Tools Lathe Grinding Machine Optical Linear Encoders

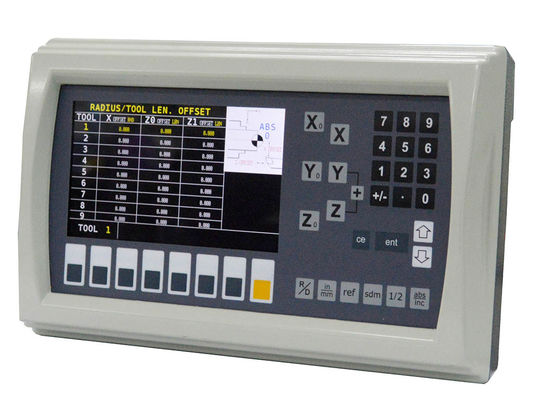

ES14B is all in one function LCD DRO which is used for different machines such as milling machine, lathe machine, boring machine and grinding machine by setting the parameter in the DRO. It has lots of graphics processing capabilities. Such as R function, line hole positioning in the milling machine.
Products Features
1. 7 inch color LCD screen and friendly operation guide software.
2. 20 options language for choice in this powerful DRO software.
3. Radius / Tool length offset
4. Background color custom choice.
5. Power failure position memory (Optional for the VA absolute linear encoder)
Digital Readout System Products Parameter
| Model Type | ES-14B | ||
| Axis number | 3 Axis | ||
| Axis Display | 0.1μm, 0.5μm, 1μm, 5μm | ||
| Signal Input | TTL | ||
| Power Supply | AC110 V - 220 V | ||
| Net Weight (kg) | 2.5 | ||
| Input frequency | 2 MB Hz | ||
| Operation Keyboard | Light touch buttons | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||
| Inputs | 2 or 3 linear scale | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
||
EMC Testing
Optical Linear Scale | Linear Scale | Optical Glass Scale Specification
| VS10 | VS11 | VS12 | VS13 | VS20 | VS21 | VS22 | VS23 | ||
| Measuring Standard | Grating Glass Scale - Grating period: 20μm (0.02mm) | ||||||||
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | ||||||||
| Slide Carrier System | Vertical five bearings supporting system | ||||||||
| Display Resolution | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | |
| Measurement Travel | 50-1200mm | Every 50mm | Not available | ||||||
| 1300-3000mm | Not available | Every 100mm | |||||||
| Accuracy | 50-450mm | ±3μm - ±5μm | -- | ||||||
| 500-800mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1050-2000mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1300-3000mm | -- | ±10μm/m | |||||||
| Repeatability | 2μm (0.002mm) | ||||||||
| Hystersis | 3μm (0.003mm) | ||||||||
| Protection | IP 53 | ||||||||
| Power supply | DC 5V ± 5% | ||||||||
| Output Signal | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | |
Installation Dimensions
VS10 / VS11 / VS12 / VS13 Series
Connector Interface
DSUB 9PIN
| PIN | TTL | 422A | ||
| Signal | Cable | Signal | Cable | |
| 1 | —— | —— | A- | Yellow |
| 2 | 0V | Orange | 0V | White |
| 3 | —— | —— | B- | Red |
| 4 | GND | GND | GND | GND |
| 5 | —— | —— | R- | Black |
| 6 | A | Yellow | A | Green |
| 7 | 5V | Red | 5V | Brown |
| 8 | B | Green | B | Blue |
| 9 | R | Brown | R | Grey |
100% Laser calibration
All Easson optical linear scale are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
