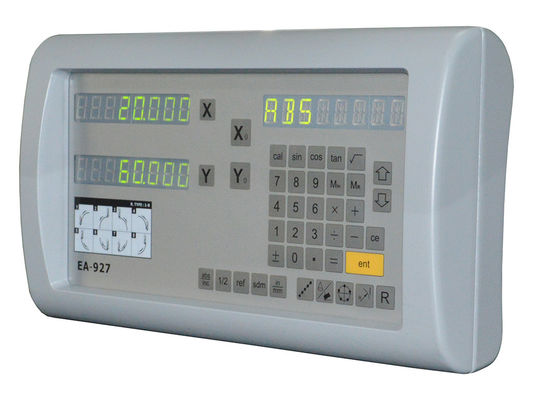

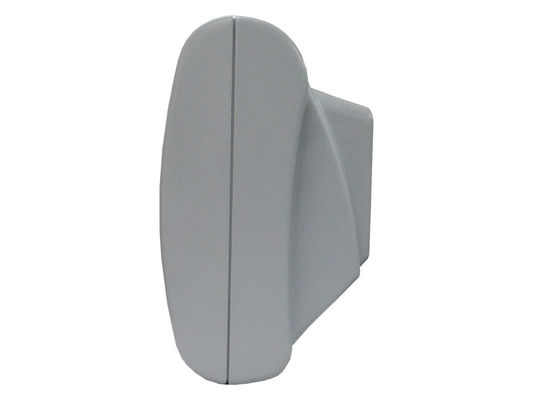

2 Axis Optical Linear Glass Scale Dro

2 Axis Optical Linear Glass Scale Dro
2 Axis Optical Linear Glass Scale Dro 2 Axis Optical Linear Glass Scale Dro 2 Axis Optical Linear Glass Scale Dro

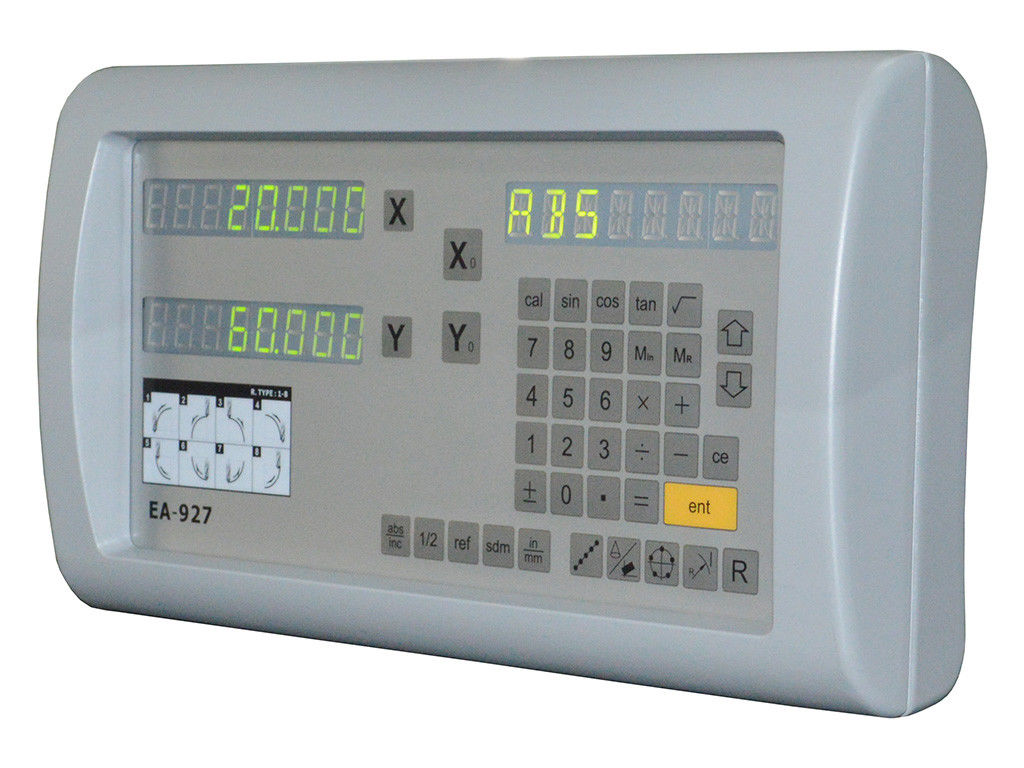

Large Image :  2 Axis Optical Linear Glass Scale Dro

Product Details:
Place of Origin: P.R.China
Brand Name: Easson
Certification: CE
Model Number: EA-927
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: Carton
Delivery Time: 3 working days
Payment Terms: T/T
Supply Ability: 1000 SETS per Months

2 Axis Optical Linear Glass Scale Dro

Description
Name: Mini Lathe Digital Readout Keyword: Mini Lathe Dro
Function: Milling, Lathe, Grinding Material: Aluminum
Warranty: 13 Months Display Resolution: 0.1 µm, 0.5 µm, 1 µm, 5 µm
Power Supply: 110V / 220V Output Signal: TTL
High Light:

Optical Linear Glass Scale Dro

,

2 Axis Glass Scale Dro

,

Optical Linear Easson Dro

 Easson Multifunctional Optical Linear Scale 2 Axis Aluminum Shell Digital Readout Dro



Product Introduction


2 Axis Optical Linear Glass Scale Dro 0
EA-927 is the new all in one function digital readout systems by Easson launch in the year 2020.  It is a practical, multifunctional optical linear scale digital display have been applied to varieties of machine tools such as Milling, Lathe, Grinding, Boring machine etc.



Working Principe



The digital display is a kind of appearance that has an analog-to-digital converter and displays the value of the measured variable in a decimal number method. It is matched with various sensors and dispensers to display various parameters. The digital appearance has the advantages of high precision, full function, fast speed, strong anti-interference ability, small size, low power consumption, intuitive readings.



Features




Ultra Low Temperature Linear Power Transformer



2 Axis Optical Linear Glass Scale Dro 1
All Easson digital readout display's power supply using a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC testing.


EMC Testing



All Easson Digital Readout products need to be pass the EMC standard specification, hence we have a complete set of EMC test esd immunity tester for the EMC testing.


2 Axis Optical Linear Glass Scale Dro 2

Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:

IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )





Aging Test



2 Axis Optical Linear Glass Scale Dro 3

.

Easson digital readout unit need to do the aging test, using 3 axis signal generator counting, make sure all couting reading correctly, high temperature test and load test for 3 x 24 hours before QC procedure.




Technical Specification




Model  EA-927
Axis number 2 Axis
Axis Display 0.1μm, 0.5μm, 1μm, 5μm
Signal Input TTL
Power Supply AC110 V - 220 V / 50Hz - 60Hz
Net Weight (kg) 2

Input frequency

2 MB Hz
Operation Keyboard Light touch buttons
Operating temperature 0℃ - 45℃
Storage temperature -40℃ - 55℃
Relative humidity ≤ 95%
Inputs 2 linear encoders
EMC Standard

IEC61000-4-2 / GB / T 17799-2
IEC61000-4-4 / GB / T 17799-4
IEC61000-4-5 / GB / T 17799-5





Basic parameter is included as below:


Centering (1/2)
Metric / inches Display (mm / Inch)
Absolute / incremental (ABS / INC)
Power off Memory (30 subdatum)
199 subdatum
Reference Memory (REF)
Zero
Pitch Circle Diameter (PCD)
Line Hole Positioning (LHOLE)
Simple “R” Function
Smooth “R” Function
Linear Error Compensation
Non Linear Error Compensation
INCL Function
Axis Speed Display





2 Axis Optical Linear Glass Scale Dro 4

2 Axis Optical Linear Glass Scale Dro 5

Easson Measurement Technology Ltd. was established since 1995, is a high-tech enterprise for over 20 years in design and manufacturing precision measuring instrument, such as Vision Measuring Systems, profile projector, DRO(counter), linear glass ruler, CNC scale;



We also is one of the few companies in this industry that equipped with master mask manufacturing facilities, all master mask of our absolute linear grating are built in house and with our registered trademark to prevent being illegal copied.
