Product Details:
|
| Name: | Mini Mill Dro | Keyword: | Scale Readout |
|---|---|---|---|
| Application: | Milling, Lathe, Grinder, Boring, Wirecut | Model: | ES-14 |
| Resolution: | 1µm, 5µm | Weight: | 2.5KGS |
| Power: | 110V / 220V | Output Signal: | A Qual B ( TTL ) |
| High Light: | Easson Dro Digital Readout,Grinding Machine Easson Dro,2 Axis Easson Digital Readout |
||

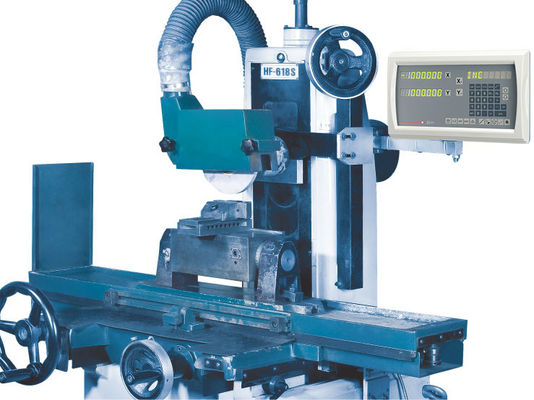

ES14 2 Axis Milling Grinding Machine Digital Readouts Dro For Machine Tools
Product Introduction
ES-14 is all in one function digital readout cabinet from Easson launched on the year 2009. In the ES-14 it is in fact possible to select the required application (Milling, Lathe, Boring, Drilling, Grinding, Wire Cutting) directly during the DRO set up. The ES-14 series is CE certified and manufactured according to the TQM. The electronic PCB comply with RoHS standards.
ES-14 High Durability Switch Membrance
The Autotex is used as the key membrance of ES series, it offer excellent chemical resistance to most commonly used industry solvent and excellent switch life, switch life of expected to be 100,000 times.
Easson all Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC.
EMC Testing equipment
All Easson DRO products can be pass the standard EMC standard specification, we have a complete set of EMC test esd immunity tester for testing the EMC.
Aging Test
Easson Digital Readouts must finished the aging test in high temperature and load test for 72 hours before QC procedure. Aging test can verify the process, design, material and other aspects are defective or not to ensure our products quality is reliable.
Technical Specification
| Model Number | ES-14 | ||
| Axis number | Two Axis | ||
| Axis Display | 0.1μm, 0.5μm, 1μm, 5μm | ||
| Signal Input | A / B quadrature signal | ||
| Voltage Range | AC110 V - 220 V / 50Hz - 60Hz | ||
| Weight (kg) | 3.5 | ||
|
Input frequency |
2 MB Hz | ||
| Keyboard | Light touch buttons | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||
| Inputs | 2 or 3 linear encoders | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
||
Basic parameter is included as below:
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Raduis / Diameter for each axis |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Clear Zero |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| Smooth “R” Function |
| Linear Error Compensation |
| Non Linear Error Compensation |
| INCL Function |
| Axis Speed Display |
Connector interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| TTL Signal | --- | 0V | --- | GND | --- | A | 5V | B | R |
| Cable | --- | Orange | --- | Ground | --- | Yellow |
