Product Details:
|
| Keyword: | Dro For Lathe Machine | Name: | Digital Readout Linear Scale |
|---|---|---|---|
| Usage: | Mill, Lathe, Grinder, Boring Machine | Axes No.: | Three Axis |
| Display Resolution: | 0.1µm, 0.5µm, 1µm, 5µm | Shell: | Aluminum |
| Power Supply: | 110V / 220V | Output Signal: | TTL |
| High Light: | LCD 3 Axis Digital Readout,Milling Lathe 3 Axis Digital Readout,Milling Lathe Lcd Dro |
||

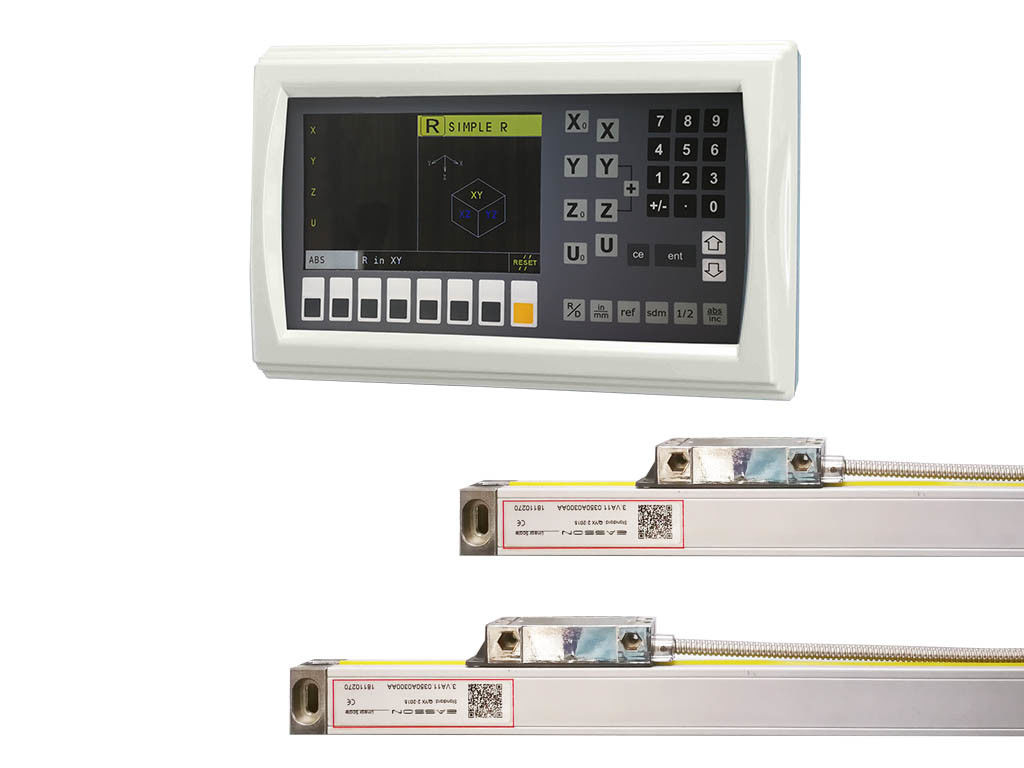

High Accuracy 3 Axis Milling & Lathe Machine LCD Digital Readout System Dro
Product Introduction
The "All in one and full options" ES-14B digital readout has been designed by Easson to supply to the oversea market in 2018. In the ES-14B it is in fact possible to select the required application(Milling, Lathe, Boring, Drilling, Grinder, Wirecut) directly during the DRO setup.
DRO display message can be confirured to one of the following languages:
1. ENGLISH 2. CHINESE 3. GERMAN 4. SPANISH 5. ITALIAN 6. PORTUGUE 7. ARABIC 8. CZECH 9. FRENCH 10. HINDI 11. INDONESI 12. JAPANESE 13. KOREAN 14. PERSIAN 15. ROMANIA 16. RUSSIAN 17. SWEDEN 18. THAI 19. TURKISH 20. VIETNAM
Technical Specification
| Model | ES-14B | ||
| Axis number | 3 Axis | ||
| Axis Display | 0.1 μm, 0.5 μm, 1 μm, 5 μm | ||
| Signal Input | TTL | ||
| Power Supply | 110 V - 220 V | ||
| Gross Weight (kg) | 3.5 | ||
|
Maximum input |
2 MB Hz | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||
| Inputs | 3 Optical Glass Scale | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
||
EMC Testing equipment
To Ensure all Easson Digital Readout products can be pass the standard EMC specification, we have a complete set of EMC test esd immunity tester to test it.
Digital Readout System
Basic parameter in the ES-14B is included as below:
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Build in Calculator |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| Smooth “R” Function |
| Linear Error Compensation |
| Non Linear Error Compensation |
| Z Axis Summation |
| Axis Speed Display |
| Bluetooth Function ( Optional ) |
| Power Failure Position Function ( Only work with Easson Absolute linear Scale) |
Easson Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC. To reduce the total heat generation inside the ES DRO in order to obtain long working life. An ultra low temperature rise transformer that construct with very high permeability icron core is used, which effectively bring temperature rise to only about 5℃.
Aging Test Room
Digital Readout System need to do the aging test in high temperature test and load test for 72 hours before QC procedure. The aging test exposes defects in the process, design, materials and other aspects of electronic devices before they leave the factory. Therefore, it is of great significance for companies to modify product designs in time, so that products can be sold after they are aging and stable, thereby improving product quality and market reputation.
