Product Details:
|
| Name: | Digital Display Meter | Keyword: | Dro For Lathe Machine |
|---|---|---|---|
| Power Supply: | AC 110V - 220V | Languages: | 20 Choices |
| Display Resolution: | 0.1µm, 0.5µm, 1µm, 5µm | Gross Wieght: | 3 Kgs |
| Output Signal: | TTL | ||
| High Light: | Mini Lathe Digital Readouts,Mill 3 Axis Digital Readout,Mini Lathe 3 Axis Dro Kit |
||

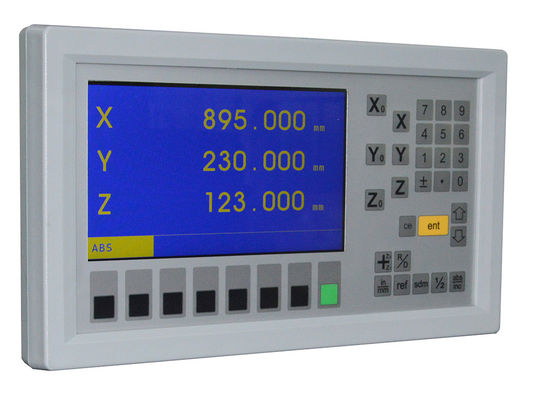

Easson 3 Axis Dro Kit Mill Lathe Machine Digital Readout With Linear Scales Encoder
Product View
Easson LCD DRO has much more user friendly, the display message can be confirured to one of the following languages:
1. ENGLISH 2. CHINESE 3. GERMAN 4. SPANISH 5. ITALIAN 6. PORTUGUE 7. ARABIC 8. CZECH 9. FRENCH 10. HINDI 11. INDONESI 12. JAPANESE 13. KOREAN 14. PERSIAN 15. ROMANIA 16. RUSSIAN 17. SWEDEN 18. THAI 19. TURKISH 20. VIETNAM
By coordinating with linear scales, EA series readouts can accurately display the value of shifting and achieve NC/CNC. You can not afford to miss this if you are looking for a reliable, efficient and cost-effective Digital Readout Device.
Technical Specification
| Model number | EA-926 | ||
| Axis | 3 Axis | ||
| Axis Display | 0.1 μm, 0.5 μm, 1 μm, 5 μm | ||
| Signal Input | TTL | ||
| Power Supply | 110 V / 220 V | ||
| Net Weight (KGS) | 2 | ||
|
Maximum input |
2 MB Hz | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||
| Inputs | 3 Optical Glass Scales | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
||
EMC Testing equipment
All Easson Digital Readout products need to be pass the EMC specification, we have a complete set of EMC test esd immunity tester to test the electromagnetic compatibility.
Different from others digital display manufacturers using switching power supply layout, Easson Digital readout power supply use a linear power transformer and power filter, it can help our products pass by the noice immunity and the EMC.
Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:
IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )
Basic parameters are included as below:
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Build in Calculator |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| Smooth “R” Function |
| Linear Error Compensation |
| Non Linear Error Compensation |
| Axis Speed Display |
| Radius / Diameter |
| Z axis Summation |
DRO advanced Functions: Non-linear error compensation
Advanced functions for Milling machine
Package include:
1. 3 axis counter 1 set
2. DRO standard arm and bracket kit 1 set (Mill , Lathe, Grinder applications as one optional)
3. Power cable 1 PCS
4. manual book 1 PCS
Delivery:
For small quantity, we suggest ship the goods by Fedex or DHL etc.express, delivery time estimate should be 3-10 days.
For large quantity, we can ship vis seafreight and air shipment, seafreight delivery time should be 30 days, air freight should be 7-10 days
Warranty:
All the products we provide 13 months( from the date of shipment )
Technical support:
we have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.
Payment:
Default is 100% T/Tpayment before shipment, if you need other request for the payment terms, welcome to contact us.
