Product Details:
|
| Keyword: | Dro For Bridgeport Milling Machine | Name: | Digital Readout For Milling Machine |
|---|---|---|---|
| Material: | Aluminum | Weight: | 3.5 Kg |
| Display Resolution: | 0.1 µm, 0.5 µm, 1 µm, 5 µm | Input Signal: | TTL |
| Application: | Milling, Lathe, Boring Machine | Power Supply: | 110 V / 220 V |
| High Light: | Bridgeport 3 Axis Digital Readout,Optical Scale 3 Axis Digital Readout,Optical Scale Bridgeport Dro |
||

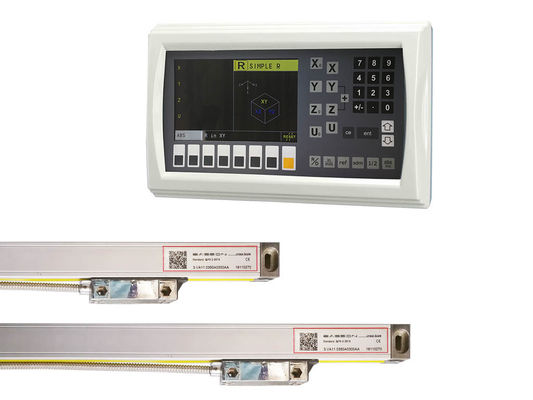

Best Quality Aluminum Shell Digital Readouts Dro With Optical Scale For Machine Tools
Packaging & Delivery
Single package size: 40 x 26 x 18 cm
Package Type: Carton box
Gross weight: 3.5 kgs
Delivery:
| Quantity | 1-10 | 11-50 | 51-100 | ＞100 |
| Est. Time ( days ) | 3 | 8 | 15 | To be negotiated |
To make the DRO much more user friendly, the display message can be confirured to one of the following languages:
1. ENGLISH 2. CHINESE 3. GERMAN 4. SPANISH 5. ITALIAN 6. PORTUGUE 7. ARABIC 8. CZECH 9. FRENCH 10. HINDI 11. INDONESI 12. JAPANESE 13. KOREAN 14. PERSIAN 15. ROMANIA 16. RUSSIAN 17. SWEDEN 18. THAI 19. TURKISH 20. VIETNAM
Technical Specification
| Model | ES-14B | ||
| Axis | 3 Axis | ||
| Axis Display | 0.1 μm, 0.5 μm, 1 μm, 5 μm | ||
| Signal Input | TTL signal | ||
| Power Supply | 110 Voltage or 220 Voltage | ||
| Weight (kg) | 3.5 | ||
|
Maximum input |
2 MB Hz | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||
| Inputs | 2 or 3 optical linear encoders | ||
| Electromagnetic Compatibility |
IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
||
EMC Testing equipment
To Make sure all Easson Digital Readout products can pass the standard EMC, we have a complete set of EMC test esd immunity tester for EMC testing.
Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:
IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )
Easson Digital readout system power supply has a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC.
To reduce the total heat generation inside the ES DRO in order to obtain long working life. An ultra low temperature rise transformer that construct with very high permeability icron core is used, which effectively bring temperature rise to only about 5℃.
Products Features
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Build in Calculator |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| ARC machining |
| Linear Error Compensation |
| Non Linear Error Compensation |
| Z Axis Summation |
| Axis Speed Display |
| Inclined angle tool positioning |
| Power Failure Position Function ( Only work with Easson Absolute linear Scale) |

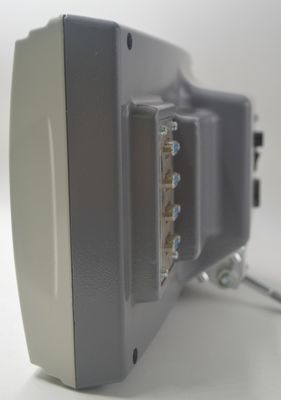

Connector interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| TTL Signal | --- | 0V | --- | GND | --- | A | 5V | B | R |
| Cable | --- | Orange | --- | Ground | --- | Yellow |
