Lathe 2 Axis Digital Readout Kit

Description

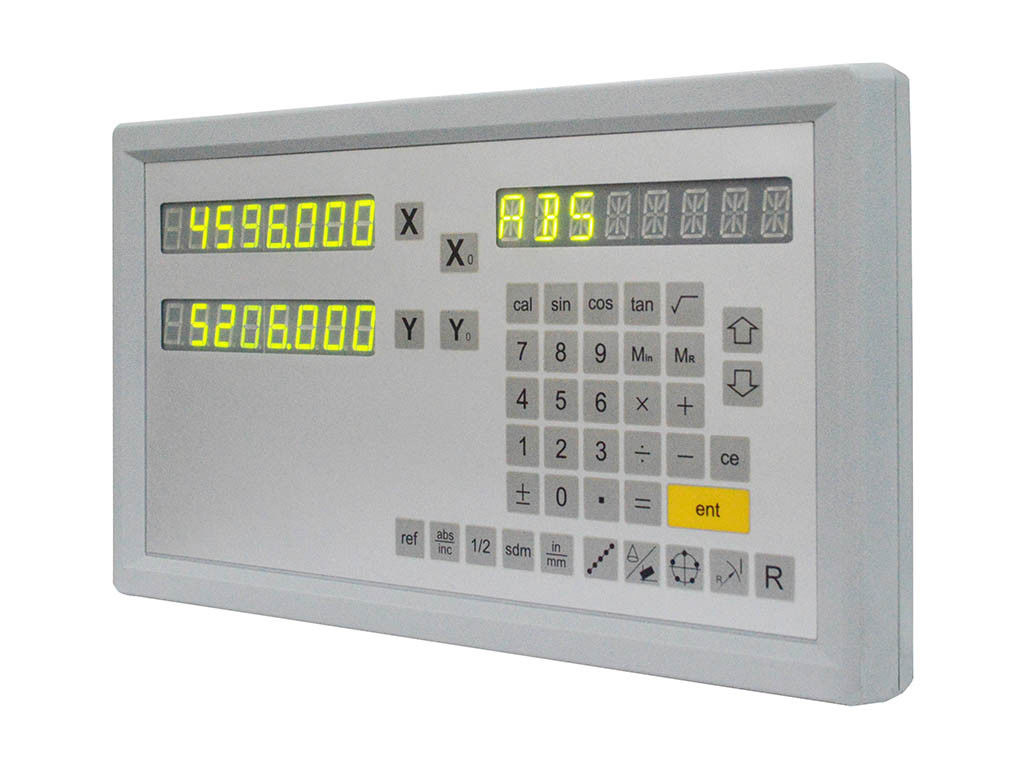

Name: 2 Axis Digital Readout For Lathe Keyword: Mini Mill Dro Kit
Material: Plastic Color: Silver Gray
Display Resolution: 0.1µm, 0.5µm, 1µm, 5µm Usage: Milling, Lathe, Grinder
Power Supply: AC 110V / 220V Output Signal: TTL
High Light:

Lathe 2 Axis Digital Readouts

,

2 Axis Digital Readout Kit

,

2 axis lathe dro kit

Low Cost EA Series Silver 2 Axis Digital Readout Systems





Digital Readouts | Linear Encoder Scale Product Display




Lathe 2 Axis Digital Readout Kit 0

Lathe 2 Axis Digital Readout Kit 1



Lathe 2 Axis Digital Readout Kit 2

Ultra Low Temperature Rise Linear Power



Easson all Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC.

Lathe 2 Axis Digital Readout Kit 3

To reduce the total heat generation inside the ES DRO in order to obtain long working life. An ultra low temperature rise transformer that construct with very high permeability icron core is used, which effectively bring temperature rise to only about 5℃.





EMC Testing equipment




To Make sure all Easson DRO products can be pass the standard EMC standard specification, we have a complete set of EMC test esd immunity tester.

Lathe 2 Axis Digital Readout Kit 4



Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:



IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )

IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )

IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )



Aging test

Lathe 2 Axis Digital Readout Kit 5

Lathe 2 Axis Digital Readout Kit 6



Easson Digital Readout System and linear scale reader head need to do the aging test for 72 hours before QC procedure. Aging test can verify the process, design, material and other aspects are defective or not to ensure our products quality is reliable.






Technical Specification






Model Name EA-926
Axis number 2 Axes
Axis Display 0.1μm, 0.5μm, 1μm, 5μm
Signal Input TTL
Voltage Range AC 110 V - 220 V
Net Weight (kg) 2

Input frequency

2 MB Hz
Operation Keyboard Light touch buttons
Operating temperature 0℃ - 45℃
Storage temperature -40℃ - 55℃
Relative humidity ≤ 95%
Inputs 2 linear glass scales
EMC Standard

IEC61000-4-2 / GB / T 17799-2

IEC61000-4-4 / GB / T 17799-4

IEC61000-4-5 / GB / T 17799-5






Basic parameter is included as below:



Centering (1/2)
Metric / inches Display (mm / Inch)
Absolute / incremental (ABS / INC)
Power off Memory (30 subdatum)
199 subdatum
Reference Memory (REF)
Zero
Pitch Circle Diameter (PCD)
Line Hole Positioning (LHOLE)
Simple “R” Function
Smooth “R” Function
Linear Error Compensation
Non Linear Error Compensation
INCL Function
Axis Speed Display





ES series DRO advanced Functions: Non-linear error compensation

Lathe 2 Axis Digital Readout Kit 7





Advanced functions for Milling machine

Lathe 2 Axis Digital Readout Kit 8








Connector interface






PIN 1 2 3 4 5 6 7 8 9
TTL Signal --- 0V --- GND --- A 5V B R
Cable --- Orange --- Ground --- Yellow
