Easson ES-14B Constant Speed Lathe 3 Axis Digital Readout System

Description
Keyword: Dro Display Name: Digital Readout For Bridgeport Mill
Usage: Constant Speed Languages: 20 Options
Display Resolution: 0.1µm, 0.5µm, 1µm, 5µm LCD Size: 7 Inch
Power Supply: 110V / 220V Output Signal: TTL
High Light:

3 Axis Digital Readout System

,

Lathe 3 Axis Digital Readouts

,

Lathe Dro Digital Readout



Product Introduction




ES14B Constant speed DRO is specially designed to provide precision constant speed control for Lathe application, it is configured according to standard CS lathe hardware as it leaves the factory.



Major Function Keys & Buttons

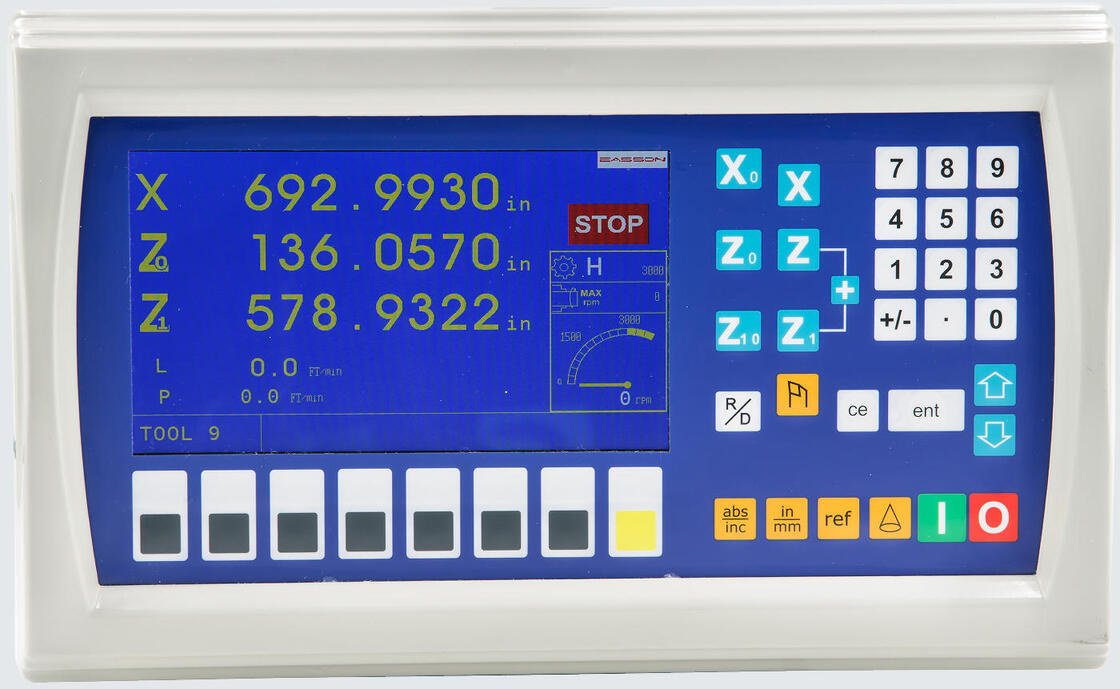

Easson ES-14B Constant Speed Lathe 3 Axis Digital Readout System 0

ES14B CS provides an 0 - 10V output to the spindle inverter to allow the direct control of spindle rotational speed, by adjusting the speed button, operator can manually adjust the spindle rotation speed to achieve machining surface finish.



Easson ES-14B Constant Speed Lathe 3 Axis Digital Readout System 1



ES14B CS provides the axis summing function for the Z and Z1 axis, operator can swap between the summed display or individual axis display by just a simple single button key press.



Easson ES-14B Constant Speed Lathe 3 Axis Digital Readout System 2






Technical Specification






Model Number ES14B CS
Axis number Four Axis
Axis Display 1μm, 5μm
Signal Input A / B quadrature signal
Power Supply 110 Voltage - 220 Voltage
Weight (kg) 2.5

Maximum input

2 MB Hz
Operating temperature 0℃ - 45℃
Storage temperature -40℃ - 55℃
Relative humidity ≤ 95%
Inputs 2 or 3 linear encoders
EMC Standard

IEC61000-4-2 / GB / T 17799-2

IEC61000-4-4 / GB / T 17799-4

IEC61000-4-5 / GB / T 17799-5





EMC Testing equipment




To Make sure all Easson DRO products can be pass the standard EMC standard specification, we have a complete set of EMC test esd immunity tester.

Easson ES-14B Constant Speed Lathe 3 Axis Digital Readout System 3

Aging Test

Easson ES-14B Constant Speed Lathe 3 Axis Digital Readout System 4

Aging test can verify products of the process, design, material and other aspects are defective or not. We can using this testing promptly revises the product design to improve product quality and service life.



Digital Readout System

Basic parameter in the ES-14B is included as below:



Centering (1/2)
Radius / Diameter for each axis
Metric / inches Display (mm / Inch)
Absolute / incremental (ABS / INC)
Power off Memory (30 subdatums)
199 subdatum
Reference Memory (REF)






Connector interface






PIN 1 2 3 4 5 6 7 8 9
TTL Signal --- 0V --- GND --- A 5V B R
Cable --- Orange --- Ground --- Yellow
