Product Details:
|
| Name: | Dro Systems | Keyword: | Easson Digital Readout |
|---|---|---|---|
| Place Of Origin: | Guangdong, P.R.China | Brand Name: | Easson |
| Display Resolution: | 5µm | Warranty: | 13 Months |
| Power: | DC 5V | Output Signal: | TTL |
| High Light: | 50 1250mm Optical Linear Encoders,Easson GS10 Optical Linear Encoders,50 1250mm easson dro systems |
||

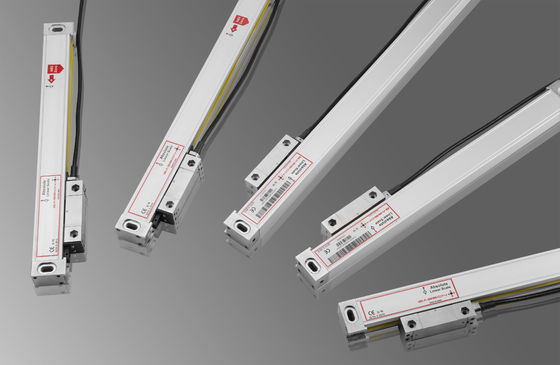

Easson GS10 50-1250mm Glass Optical Linear Encoders Dro Scale
For typical applications of manual machine tools such as milling or lathes, GS series provide such a resolution with an accuracy class of ± 10 μm within 1meter travel range.
Advanced Optical Measuring System
Reading head moves along the small friction guide rail of the grating ruler. The reading head is connected to the external mounting frame through the coupling. It can compensate for the inevitable alignment error between the grating ruler and the machine tool rail
Double Seals Design
The plastic seals of GS series scales use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.
Product Specification
| GS10 | GS11 | GS12 | GS13 | GS30 | GS31 | GS32 | GS33 | ||
| Measuring Standard | Glass Scale - Grating period: 20μm (0.02mm) | ||||||||
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | ||||||||
| Slide Carrier System | Vertical five bearings supporting system | Vertical five bearings supporting system | |||||||
| Resolution | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | |
| Measurement Travel | 100-1200mm | Every 50mm per length Spec. | Every 50mm per length Spec. | ||||||
| 1300-3000mm | Not available | Every 50mm per length Spec. up to 500mm | |||||||
| Accuracy | 100-450mm | ±8μm | ±5μm | ±8μm | ±5μm | ±8μm | ±5μm | ±8μm | ±5μm |
| 500-800mm | ±10μm | ±8μm | ±10μm | ±8μm | -- | ||||
| 1050-2000mm | ±15μm | ±12μm | ±15μm | ±12μm | -- | ||||
| 1300-3000mm | -- | -- | |||||||
| Repeatability | 2μm (0.002mm) | ||||||||
| Hystersis | 3μm (0.003mm) | ||||||||
| Protection | IP 53 | ||||||||
| Power supply | DC 5V ± 5% | ||||||||
| Output Signal | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | |
Installation Dimensions
GS10 / GS11 / GS12 / GS13 Series
GS30 / GS31 / GS32 / GS33 Series
Connector interface
DSUB 9PIN
| PIN | TTL | 422A | ||
| Signal | Cable | Signal | Cable | |
| 1 | —— | —— | A- | Yellow |
| 2 | 0V | Orange | 0V | White |
| 3 | —— | —— | B- | Red |
| 4 | GND | GND | GND | GND |
| 5 | —— | —— | R- | Black |
| 6 | A | Yellow | A | Green |
| 7 | 5V | Red | 5V | Brown |
| 8 | B | Green | B | Blue |
| 9 | R | Brown | R | Grey |
DIN 7PIN
| PIN | Cable | TTL |
| 1 | Orange | 0V |
| 2 | —— | —— |
| 3 | Yellow | A |
| 4 | Green | B |
| 5 | Red | 5V |
| 6 | Brown | R |
| 7 | Ground | GND |
| Case | Ground | GND |
100% Laser calibration
Each glass ruler are rigorous calibrated by our in-house laser interferometer, and can provide accuracy test reports to ensure product quality and quality traceability.
Accuracy report in QR code
Each linear encoder is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
