0.01μm Absolute Scale CNC Optical Inspection System Ensuring Accurate Dimensional Inspection and Production Monitoring

Product Description:

The CNC Vision Measuring System represents a cutting-edge solution designed for precision measurement in diverse industrial applications. Engineered as a CNC Coordinate Measuring Machine, this system offers unparalleled accuracy and reliability, making it an essential tool for quality control and inspection processes across manufacturing sectors.

At the heart of this Industrial Vision Measurement System lies its exceptional resolution capabilities. Featuring a 0.01μm Absolute Scale, the system ensures that even the most minute details are captured with extraordinary precision. This high resolution is critical for industries that demand meticulous measurement standards, such as aerospace, automotive, electronics, and medical device manufacturing. The system’s ability to deliver such fine resolution guarantees that components meet stringent specifications, reducing the risk of defects and enhancing overall product quality.

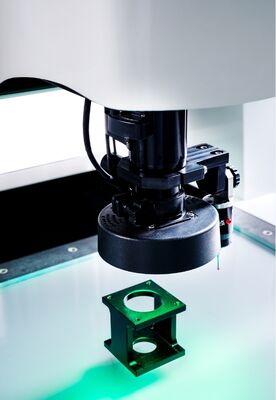

Complementing its impressive resolution, the CNC Vision Measuring System is equipped with a sophisticated lighting system that incorporates both LED Coaxial and Ring Light configurations. This dual lighting setup provides optimal illumination, eliminating shadows and reflections that could otherwise compromise measurement accuracy.

The LED coaxial light is particularly effective for highlighting surface features, while the ring light ensures uniform brightness across the measurement area. Together, these lighting elements enable the Industrial Vision Measurement System to perform consistently under various environmental conditions and with different types of materials.

Measurement accuracy is a critical attribute of any vision measurement system, and this CNC Coordinate Measuring Machine excels in this regard. It boasts a measurement accuracy formula of (1.5+L/200)μm, where “L” represents the measured length in millimeters. This level of precision ensures reliable and repeatable measurements, facilitating stringent quality assurance protocols. Manufacturers can trust this system to detect even the slightest deviations from design specifications, thereby minimizing waste and optimizing production efficiency.

The display resolution of the CNC Vision Measuring System is equally impressive, featuring a 0.01μm Absolute Linear Encoder.

This advanced encoder technology translates the physical movements of the measuring stage into precise digital signals, enabling high-fidelity data acquisition and visualization. The result is a measurement process that is not only accurate but also highly transparent and easy to interpret.

Users benefit from clear, detailed readouts that support informed decision-making and streamlined workflow integration.

Central to the system’s optical capabilities is a High Resolution CMOS Camera, which serves as the primary imaging device. This camera delivers sharp, high-quality images that are essential for detailed inspection and analysis. The high resolution of the CMOS sensor allows for the detection of fine surface features and subtle dimensional variations, making it ideal for complex components with intricate geometries. Moreover, the camera’s performance contributes to the overall speed and efficiency of the measurement process, enabling rapid data capture without sacrificing accuracy.

In summary, the CNC Vision Measuring System is a state-of-the-art Industrial Vision Measurement System that combines superior resolution, advanced lighting technology, exceptional measurement accuracy, and high-quality imaging to deliver precise and reliable measurement solutions. Its integration of a 0.01μm Absolute Scale, LED Coaxial and Ring Light system, (1.5+L/200)μm measurement accuracy, 0.01μm Absolute Linear Encoder display resolution, and a High Resolution CMOS Camera makes it an indispensable asset for industries requiring meticulous quality control.

By leveraging the capabilities of this CNC Coordinate Measuring Machine, manufacturers can enhance their inspection processes, reduce errors, and maintain competitive advantage in today’s demanding production environments. Whether used for routine quality checks or complex dimensional analysis, this Industrial Vision Measurement System stands out as a benchmark for precision and reliability in industrial metrology.

Features:

• Product Name: CNC Vision Measuring System
• Measurement Accuracy: (1.5+L/200) μm, ensuring precise measurements
• High Resolution CMOS Camera (CCD) for clear and detailed imaging
• Resolution: 0.01 μm Absolute Scale for exceptional detail
• Display Resolution: 0.01 μm Absolute Linear Encoder for accurate readouts
• Data Output Formats: CSV, DXF, PDF for versatile data handling
• High Accuracy Vision Measuring System suitable for industrial applications
• Industrial Vision Measurement System designed for enhanced measurement reliability

Technical Parameters:

Applications:

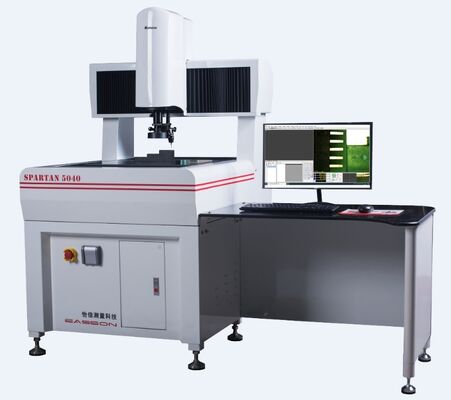

The Easson SP-5040 CNC Vision Measuring System is an advanced CNC Optical Inspection System designed to meet the stringent demands of modern manufacturing and quality control. Originating from China, this high accuracy vision measuring system integrates cutting-edge technology, including a 1.3 Megapixels camera resolution and a display resolution of 0.01μm Absolute Linear Encoder, ensuring exceptional precision in measurement tasks. With a measurement accuracy of (1.5+L/200)μm, the SP-5040 is ideal for industries where exact dimensional verification is critical.

This CNC Optical Inspection System is widely applied in various industrial scenarios such as aerospace, automotive, electronics, and precision machinery manufacturing. In aerospace component production, the SP-5040 ensures that every part meets strict tolerance requirements, preventing costly errors and enhancing safety. In the automotive sector, it facilitates the inspection of engine parts, transmission components, and other critical elements, improving overall product reliability and performance.

The electronics industry benefits from the system's high-resolution camera and automatic operation model, enabling rapid and accurate inspection of miniature components and circuit boards. This capability is essential for maintaining quality standards in the production of smartphones, semiconductors, and other electronic devices. Additionally, the system's automatic operation reduces human error and increases throughput, making it highly suitable for high-volume production environments.

Moreover, the Easson SP-5040 supports multiple data output formats such as CSV, DXF, and PDF, allowing seamless integration with various quality management and reporting systems. This flexibility enhances traceability and documentation, which is crucial for compliance with international quality standards and audits.

In summary, the Easson SP-5040 CNC Optical Inspection System is an indispensable tool for manufacturers seeking a reliable, high accuracy vision measuring system. Its advanced features and versatile data handling capabilities make it perfect for a wide range of application occasions, from prototype development to large-scale production quality assurance, ensuring precision and efficiency every step of the way.

Support and Services:

Our CNC Vision Measuring System is backed by comprehensive product technical support and services designed to ensure optimal performance and customer satisfaction.

We provide detailed user manuals and installation guides to help you set up and operate the system efficiently. Our technical support team is available to assist with troubleshooting, software updates, and calibration procedures.

Regular maintenance services are offered to keep your CNC Vision Measuring System operating at peak accuracy and reliability. This includes system diagnostics, hardware inspections, and alignment checks.

Training programs are available for operators and technicians to maximize the capabilities of the system and ensure proper usage.

In addition, we offer customization options and software enhancements to tailor the system to your specific measurement needs.

Our commitment is to provide timely and effective support throughout the lifecycle of your CNC Vision Measuring System, ensuring minimal downtime and enhanced productivity.

FAQ:

Q1: What is the brand and model number of this CNC Vision Measuring System?

A1: The CNC Vision Measuring System is manufactured by Easson, and the model number is SP-5040.

Q2: Where is the Easson SP-5040 CNC Vision Measuring System made?

A2: The Easson SP-5040 is made in China.

Q3: What are the main applications of the Easson SP-5040 CNC Vision Measuring System?

A3: The Easson SP-5040 is used for precise measurement and inspection of small to medium-sized components in industries such as electronics, automotive, aerospace, and manufacturing.

Q4: What type of measurement capabilities does the Easson SP-5040 offer?

A4: The Easson SP-5040 provides high-accuracy 2D and 3D measurements using advanced vision technology combined with CNC control for automated and repeatable inspections.

Q5: Is the Easson SP-5040 CNC Vision Measuring System user-friendly for operators?

A5: Yes, the Easson SP-5040 features an intuitive user interface and software designed to simplify operation, making it easy for operators to perform measurements efficiently.
