Product Description:
The Optical Linear Encoders product line offers high-precision measurement solutions for various industrial applications, particularly suited for use with Linear Scale Digital Readout Systems.
The VS20 model, equipped with advanced Incremental Encoder technology, ensures accurate and reliable position feedback for improved operational efficiency.

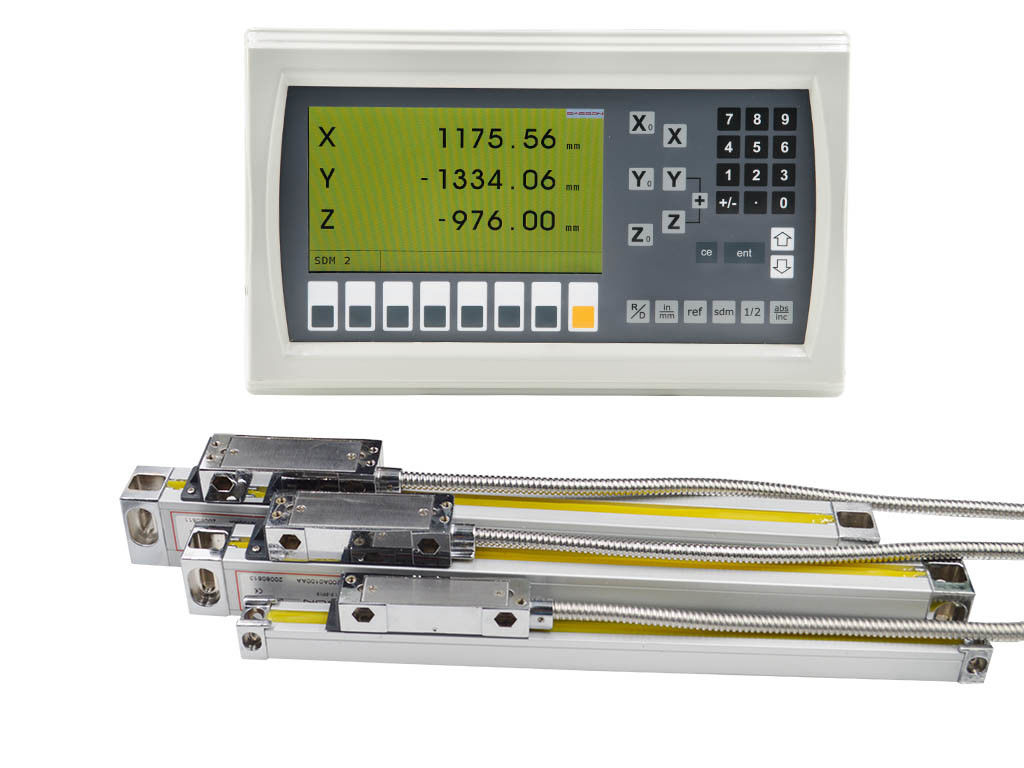

Designed for linear mounting, the Optical Linear Encoders are compatible with Linear Scale Digital Readout Systems, making them ideal for applications that require precise linear measurements. The VS20 model, in particular, is a versatile option that provides exceptional performance in a variety of settings.
With a robust protection class of IP67, the Optical Linear Encoders offer durability and reliability in challenging environments. This ensures that the encoders can withstand dust, dirt, and water exposure, making them suitable for a wide range of industrial applications.
Moreover, the Optical Linear Encoders are available in a range of gross weights, from 4 to 12 kgs, providing flexibility in installation and integration into different systems. This versatility makes them a practical choice for various industrial setups that require precise linear measurement capabilities.

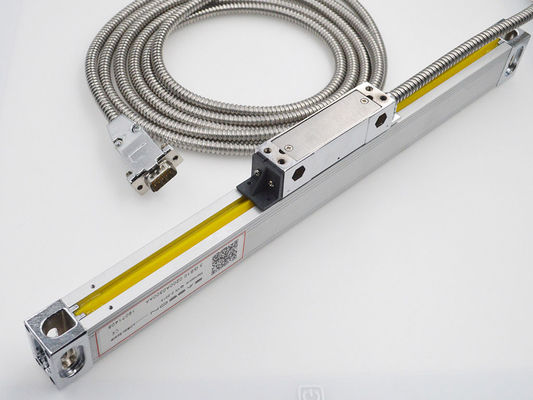

The Optical Linear Encoders utilize Glass Scale Linear Encoder technology to deliver high-resolution position feedback, enabling precise and accurate measurement of linear movements. This ensures that the encoders can meet the demanding requirements of industrial applications that rely on precise linear positioning.
Overall, the Optical Linear Encoders, with their Incremental Encoder technology and compatibility with Linear Scale Digital Readout Systems, offer a reliable and efficient solution for industrial measurement needs. The VS20 model, in particular, stands out for its high performance, durability, and versatility, making it a preferred choice for applications that demand precision and reliability in linear measurement.
Features:
- Product Name: Optical Linear Encoders
- Mounting Type: Linear
- Operating Temperature: 0-50 Degrees Celsius
- Keyword: Linear Scale Digital Readout Systems
- Warranty: 13 Months
- Application: Mill, Lathe, Grinder, Drilling
Technical Parameters:
| Output Signal |
Analog Or Digital |
| Length |
1300-3000mm |
| Encoder Resolution |
1µm, 5µm |
| Protection Class |
IP67 |
| Mounting Type |
Linear |
| Model |
VS20 |
| Application |
Mill, Lathe, Grinder, Drilling |
| Display Resolution |
0.1µm, 0.5µm, 1µm, 5µm |
| Voltage |
DC5V |
| Gross Weight |
4-12 Kgs |

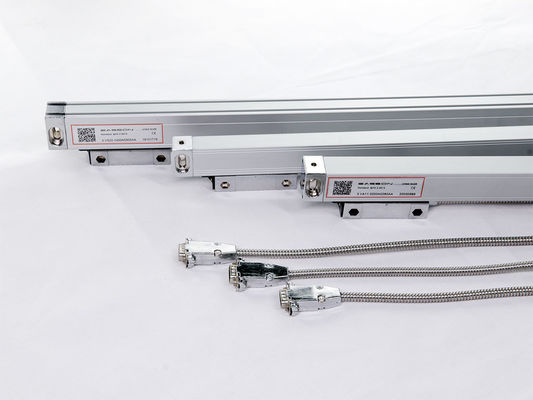

| VS10 |
VS11 |
VS12 |
VS13 |
VS20 |
VS21 |
VS22 |
VS23 |
| Measuring Standard |
Glass Scale - Grating period: 20μm (0.02mm) |
| Optical Detecting System |
Transmissive Infrared System: wave length 880mm |
| Slide Carrier System |
Vertical five bearings supporting system |
| Resolution |
5μm |
1μm |
5μm |
1μm |
5μm |
1μm |
5μm |
1μm |
| Measurement Travel |
50-1200mm |
Every 50mm |
Not available |
| 1300-3000mm |
Not available |
Every 100mm |
| Accuracy |
50-450mm |
±3μm - ±5μm |
-- |
| 500-800mm |
±10μm |
±5μm |
±10μm |
±5μm |
-- |
| 1050-2000mm |
±10μm |
±5μm |
±10μm |
±5μm |
-- |
| 1300-3000mm |
-- |
±10μm/m |
| Repeatability |
2μm (0.002mm) |
| Hystersis |
3μm (0.003mm) |
| Protection |
IP 53 |
| Power supply |
DC 5V ± 5% |
| Output Signal |
TTL |
TTL |
422 |
422 |
TTL |
TTL |
422 |
422 |
Applications:
EASSON Optical Linear Encoders, specifically the VS10 and VS20 models, are versatile and reliable tools suitable for a wide range of applications and scenarios. These high-quality products are manufactured in P.R. China and come with CE certification, ensuring their adherence to stringent quality standards.
One key feature of the EASSON Optical Linear Encoders is their suitability for various Product Application Occasions and Scenarios. These include but are not limited to:
- Machine Tools: The precise measurements provided by the EASSON encoders make them ideal for use in machine tool applications where accuracy is paramount. Their compatibility with Linear Scale Digital Readout Systems ensures seamless integration.
- Industrial Automation: The EASSON encoders are well-suited for use in industrial automation systems, providing accurate feedback for motion control and positioning tasks.
- Metrology and Quality Control: With display resolutions ranging from 0.1µm to 5µm, the EASSON encoders are perfect for metrology and quality control applications where precise measurements are essential.
These encoders are designed for linear mounting and operate at a voltage of DC5V. They can withstand operating temperatures ranging from 0 to 50 degrees Celsius, making them suitable for use in diverse environmental conditions.
Each EASSON Optical Linear Encoder comes with a minimum order quantity of 1 and is packaged securely in a carton for safe delivery. Speaking of delivery, orders are typically shipped within three to five days, ensuring prompt availability.
When it comes to payment terms, EASSON requires 100% T/T before shipment. However, the price of the encoders can be discussed based on the specific requirements of the customer.
With a supply ability of 1000 pieces per month, EASSON ensures that customers can easily procure these high-performance encoders for their applications. Keywords like Glass Scale Linear Encoder, Glass Linear Encoder, and Glass Scale Linear Encoder highlight the precision and quality that these products bring to the table.
Support and Services:
Product Technical Support and Services for Optical Linear Encoders:
- Installation assistance
- Troubleshooting guidance
- Repair and maintenance services
- Software updates and firmware upgrades
- Training and technical documentation
