Product Details:
|
| Name: | Bridgeport Dro | Model No: | GS10 |
|---|---|---|---|
| Brand Name: | Easson | Resolution: | 5 µm |
| Meas. Length: | 50-1000mm | Power: | DC 5V |
| Output Signal: | TTL | Keyword: | Bridgeport Digital Readout |
| High Light: | Cnc Linear Ruler,Optical Linear Ruler,Easson GS10 linear scale measurement |
||

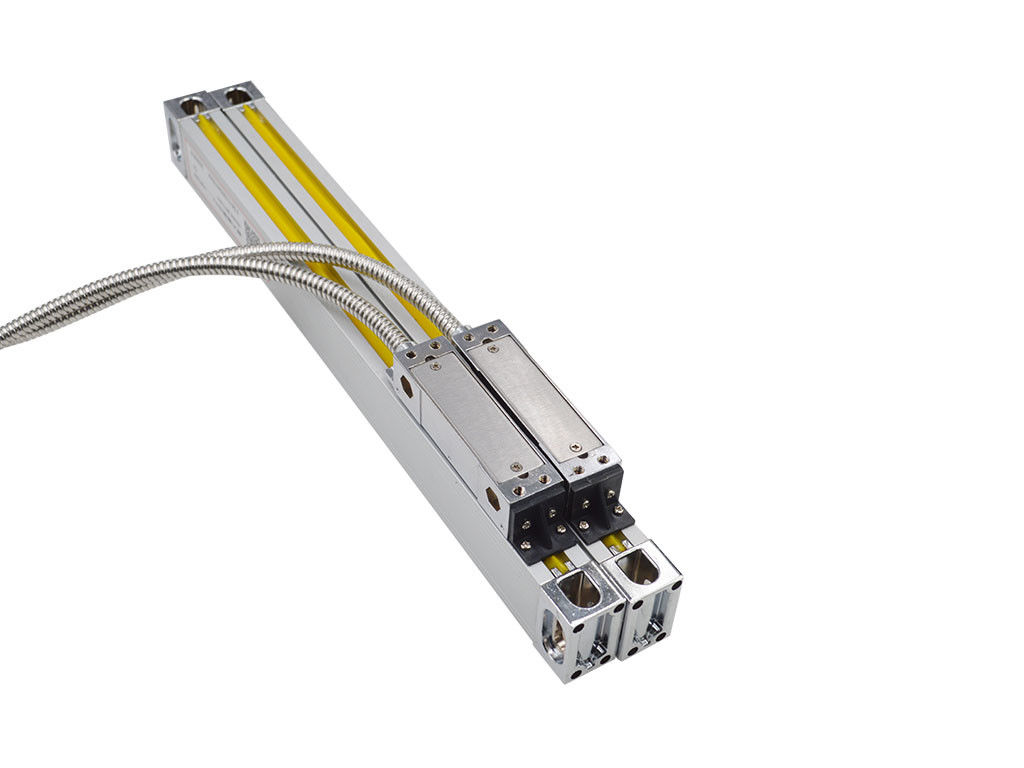

50 - 1000 Mm Linear Ruler For Mill Lathe Machine Tools
Product Specification
Easson product linear encoder is widely use in milling machine, lathe, grinding machine,
EDM, Boring etc.. we can supply customize OEM products such as grating of special types and specifications,
with other apparatus and mechanical equipments.
| GS10 | GS11 | GS12 | GS13 | GS20 | GS21 | GS22 | GS23 | GS30 | GS31 | GS32 | GS33 | ||
| Measuring Standard | Glass Scale - Grating period: 20μm (0.02mm) | ||||||||||||
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | ||||||||||||
| Slide Carrier System | Vertical five bearings supporting system | 45° five bearings supporting system | Vertical five bearings supporting system | ||||||||||
| Resolution | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | |
| Measurement Travel | 50-1200mm | Every 50mm per length Spec. | Not available | Every 50mm per length Spec. | |||||||||
| 1300-3000mm | Not available | Every 100mm per length Spec. | Every 50mm per length Spec. up to 500mm | ||||||||||
| Accuracy | 100-450mm | ±8μm | ±5μm | ±8μm | ±5μm | -- | ±8μm | ±5μm | ±8μm | ±5μm | |||
| 500-800mm | ±10μm | ±8μm | ±10μm | ±8μm | -- | -- | |||||||
| 1050-2000mm | ±15μm | ±12μm | ±15μm | ±12μm | -- | -- | |||||||
| 1300-3000mm | -- | ±25μm | -- | ||||||||||
| Repeatability | 2μm (0.002mm) | ||||||||||||
| Hystersis | 3μm (0.003mm) | ||||||||||||
| Protection | IP 53 | ||||||||||||
| Power supply | DC 5V ± 5% | ||||||||||||
| Output Signal | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | |
Installation Dimensions
GS10 / GS11 / GS12 / GS13 Series
GS30 / GS31 / GS32 / GS33 Series
Connector interface
DSUB 9PIN
| PIN | TTL | 422A | ||
| Signal | Cable | Signal | Cable | |
| 1 | —— | —— | A- | Yellow |
| 2 | 0V | Orange | 0V | White |
| 3 | —— | —— | B- | Red |
| 4 | GND | GND | GND | GND |
| 5 | —— | —— | R- | Black |
| 6 | A | Yellow | A | Green |
| 7 | 5V | Red | 5V | Brown |
| 8 | B | Green | B | Blue |
| 9 | R | Brown | R | Grey |
DIN 7PIN
| PIN | Cable | TTL |
| 1 | Orange | 0V |
| 2 | —— | —— |
| 3 | Yellow | A |
| 4 | Green | B |
| 5 | Red | 5V |
| 6 | Brown | R |
| 7 | Ground | GND |
| Case | Ground | GND |
Product Description
Advanced Optical Measuring System
The slide carrier of GS series linear encoder, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
Double Seals Design
GS series linear encoder's sealing lip use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.
100% Laser calibration
Linear encoders are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
Accuracy report
Each linear scale is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
