Product Details:
|
| Application: | Mill, Lathe, Grinder, Boring | Voltage: | 110V - 220V, 50Hz |
|---|---|---|---|
| Languages: | Chinese, English, German, Spanish, Thai, Hindi | Display Resolution: | 0.1µm, 0.5µm, 1µm, 5µm |
| Gross Wieght: | 3.5 Kgs | Output Signal: | TTL |
| Name: | Digital Readout For Bridgeport Mill Lathe Mill | Keyword: | Digital Readout Linear Scale |
| High Light: | 1um 5um Linear Scale Encoder,Mill Lathe Linear Scale Encoder,0.1um easson linear ruler |
||
Digital Readout Mill Lathe Lcd Dro 1um 5um Linear Scale Encoder
Products Description
Easson 3 Axis multifunctional LCD DRO ES-14B which is used for multiple machine tool like milling machine, lathe machine, boring machine and grinding machine by setting the parameter in the DRO. It has a lot of graphics processing capabilities. For example, R function, line hole positioning in the milling machine.
Digital Readout System Products Parameter
| Model | ES-14B | ||
| Axis number | 3 Axis | ||
| Axis Display | 0.1μm, 0.5μm, 1μm, 5μm | ||
| Signal Input | TTL | ||
| Power Supply | AC110 V - 220 V | ||
| Net Weight (kg) | 2.5 | ||
| Input frequency | 2 MB Hz | ||
| Operation Keyboard | Light touch buttons | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||
| Inputs | 2 or 3 linear encoder | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
||
Optical Linear Glass Scale | Linear Scale | Optical Linear Encoder Specification
| VS10 | VS11 | VS12 | VS13 | VS20 | VS21 | VS22 | VS23 | ||
| Measuring Standard | Grating Glass Scale - Grating period: 20μm (0.02mm) | ||||||||
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | ||||||||
| Slide Carrier System | Vertical five bearings supporting system | ||||||||
| Display Resolution | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | |
| Measurement Travel | 50-1200mm | Every 50mm | Not available | ||||||
| 1300-3000mm | Not available | Every 100mm | |||||||
| Accuracy | 50-450mm | ±3μm - ±5μm | -- | ||||||
| 500-800mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1050-2000mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1300-3000mm | -- | ±10μm/m | |||||||
| Repeatability | 2μm (0.002mm) | ||||||||
| Hystersis | 3μm (0.003mm) | ||||||||
| Protection | IP 53 | ||||||||
| Power supply | DC 5V ± 5% | ||||||||
| Output Signal | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | |
Drawing Dimension
VS10 Series
VS20 Series
Advanced Optical Measuring System
The slide carrier of the VS / VA linear encoder scales, using a five bearing design and six spring for optical grating linear transducer, ensure the VA scales not effected by installation, the spring can adjust the angle when the operator install not good for the alignment, so that it can reach a higer accuracy than one spring design reader head.
DSUB 9PIN
| PIN | TTL | 422A | ||
| Signal | Cable | Signal | Cable | |
| 1 | —— | —— | A- | Yellow |
| 2 | 0V | Orange | 0V | White |
| 3 | —— | —— | B- | Red |
| 4 | GND | GND | GND | GND |
| 5 | —— | —— | R- | Black |
| 6 | A | Yellow | A | Green |
| 7 | 5V | Red | 5V | Brown |
| 8 | B | Green | B | Blue |
| 9 | R | Brown | R | Grey |
100% Laser calibration
Easson optical linear scale are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.

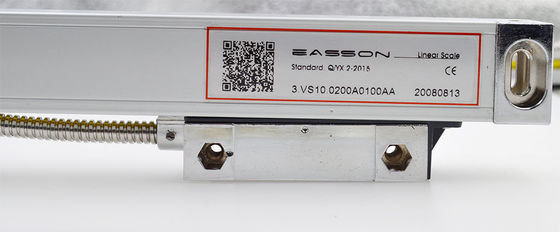

QR Code Printed With The Accuracy Measurement Report
