Description
Name: Glass Scale Linear Encoder Keyword: Laser Linear Encoder
Application: Milling, Lathe, Grinder, Drilling Voltage: 110V - 220V
Languages: 20 Choices Display Resolution: 0.1µm, 0.5µm, 1µm, 5µm
Gross Wieght: 3 Kgs Output Signal: TTL
High Light:

0.1µm Glass Scale Linear Encoder

,

Milling Glass Scale Linear Encoder

,

0.1µm Dro Linear Scale

Linear Encoder Linear Scale For Drilling Milling Lathe Grinder With Digital Readout System



Product Introduction




ES-14B LCD is all in one function digital readout system by Easson. It is a practical, multifunctional optical linear encoder digital display have been applied to varieties of machine tools such as Milling, Lathe, Grinding, Boring machine etc.

By coordinating with linear encoder scales, ES series readouts can accurately display the value of shifting and achieve NC/CNC machine.

You can not afford to miss this if you are looking for a reliable, efficient and cost-effective Digital Readout Device.




Products Parameter



Centering (1/2)
Metric / inches Display (mm / Inch)
Absolute / incremental (ABS / INC)
Power off Memory (30 subdatum)
199 subdatum
Reference Memory (REF)
Zero
Pitch Circle Diameter (PCD)
Line Hole Positioning (LHOLE)
Simple “R” Function
Smooth “R” Function
Linear Error Compensation
Non Linear Error Compensation
INCL Function
Axis Speed Display




Optical Linear Encoder | Linear Scale | Optical Glass Scale



Advanced Optical Measuring System



Easson VS Series 1um Milling & Lathe Machine Optical Linear Scale With Digital Readout



The important difference between VS linear scale and the current China mainland market's Incremental optical linear encoder is the slide carrier, VS scale use a five bearing design and six spring for optical grating linear transducer, more reliable support bracket system, specially in long dimension scale like the long Lathe machine. The Accuracy is much better than the GS20 series long scale.



Optical Linear Encoder Scale Specification



  VS10 VS11 VS12 VS13 VS20 VS21 VS22 VS23
Measuring Standard Grating Glass Scale - Grating period: 20μm (0.02mm)
Optical Detecting System Transmissive Infrared System: wave length 880mm
Slide Carrier System Vertical five bearings supporting system
Display Resolution 5μm 1μm 5μm 1μm 5μm 1μm 5μm 1μm
Measurement Travel 50-1200mm Every 50mm Not available
1300-3000mm Not available Every 100mm
Accuracy 50-450mm ±3μm - ±5μm --
500-800mm ±10μm ±5μm ±10μm ±5μm --
1050-2000mm ±10μm ±5μm ±10μm ±5μm --
1300-3000mm -- ±10μm/m
Repeatability 2μm (0.002mm)
Hystersis 3μm (0.003mm)
Protection IP 53
Power supply DC 5V ± 5%
Output Signal TTL TTL 422 422 TTL TTL 422 422





Installation Dimensions




VS10 / VS11 / VS12 / VS13 Series

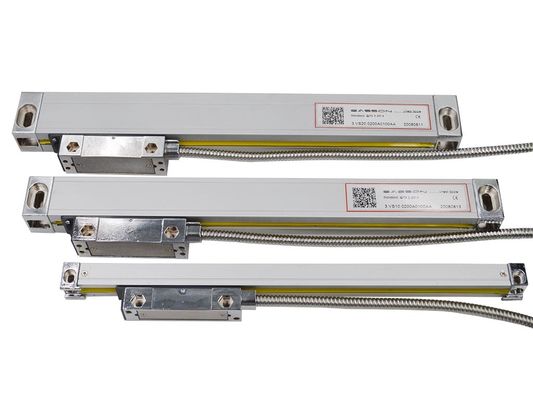

0.1µm Drilling Milling Lathe Grinder Glass Scale Linear Encoder 1





DSUB 9PIN

Easson VS Series 1um Milling & Lathe Machine Optical Linear Scale With Digital Readout

PIN TTL 422A
Signal Cable Signal Cable
1 —— —— A- Yellow
2 0V Orange 0V White
3 —— —— B- Red
4 GND GND GND GND
5 —— —— R- Black
6 A Yellow A Green
7 5V Red 5V Brown
8 B Green B Blue
9 R Brown R Grey





100% Laser calibration


0.1µm Drilling Milling Lathe Grinder Glass Scale Linear Encoder 3

All Easson linear scale are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
