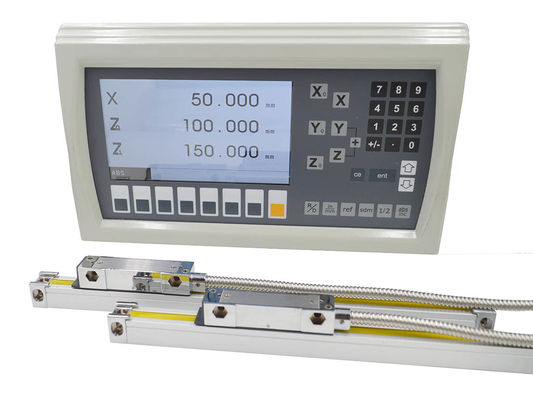

Dro Readout Glass Scale Linear Encoder Cnc Resolution 5um 1um

Dro Readout Glass Scale Linear Encoder Cnc Resolution 5um 1um
Dro Readout Glass Scale Linear Encoder Cnc Resolution 5um 1um Dro Readout Glass Scale Linear Encoder Cnc Resolution 5um 1um Dro Readout Glass Scale Linear Encoder Cnc Resolution 5um 1um Dro Readout Glass Scale Linear Encoder Cnc Resolution 5um 1um

Large Image :  Dro Readout Glass Scale Linear Encoder Cnc Resolution 5um 1um

Product Details:
Place of Origin: P.R.China
Brand Name: Easson
Certification: CE
Model Number: VS10
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: Plywood Case
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1500 PCS per Month

Dro Readout Glass Scale Linear Encoder Cnc Resolution 5um 1um

Description
Name: Linear Glass Scale Keyword: Linear Position Encoder
Meas. Standard: 0.02 Mm Meas. Length: 50-1200 Mm
Display Resolution: 0.005 Mm Warranty: 13 Months
Power Supply: DC 5V Output Signal: TTL ( A Qual B )
High Light:

Glass Scale Linear Encoder Cnc

,

Dro Glass Scale Linear Encoders

,

Easson VS10 Linear Encoder Resolution

High Accuracy VS Series Linear Encoder With 5um / 1um Resolution For Milling Grinder



Dro Readout Glass Scale Linear Encoder Cnc Resolution 5um 1um 0



Advanced Optical Measuring System

Dro Readout Glass Scale Linear Encoder Cnc Resolution 5um 1um 1Dro Readout Glass Scale Linear Encoder Cnc Resolution 5um 1um 2

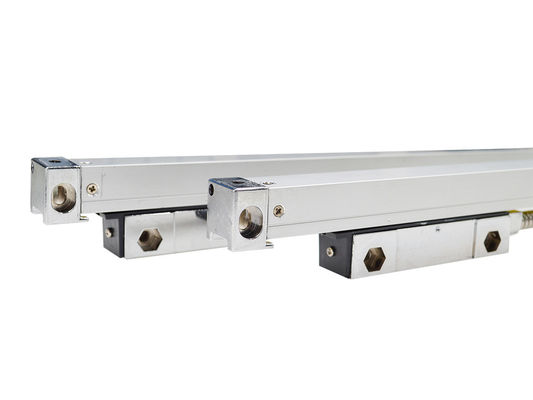

The slide carrier of the VS / VA series scales, use a five bearing design and six spring for optical grating linear transducer, specially in long dimension scale like the large Lathe machine. The Accuracy is better than the GS20 series long scale.



Features:

A). Reader head's slide carrier, use five bearing design and six spring for optical grating linear transducer

B). VS20 series can connect a positive press system to reach waterproof IP65.

C). Moving speed can more than 120m/min.



Aging Test



Dro Readout Glass Scale Linear Encoder Cnc Resolution 5um 1um 3

Easson Optical Linear Scale's reader head sensor need to power on for 72 hours aging test before assemble,

make sure all linear scale's quality is reliable.



Product Specification



  VS10 VS11 VS12 VS13 VS20 VS21 VS22 VS23
Measuring Standard Glass Scale - Grating period:  20μm (0.02mm)
Optical Detecting System Transmissive Infrared System: wave length 880mm
Slide Carrier System Vertical five bearings supporting system
Resolution 5μm 1μm 5μm 1μm 5μm 1μm 5μm 1μm
Measurement Travel 50-1200mm Every 50mm Not available
1300-3000mm Not available Every 100mm
Accuracy 50-450mm ±3μm - ±5μm --
500-800mm ±10μm ±5μm ±10μm ±5μm --
1050-2000mm ±10μm ±5μm ±10μm ±5μm --
1300-3000mm -- ±10μm/m
Repeatability 2μm (0.002mm)
Hystersis 3μm (0.003mm)
Protection IP 53
Power supply DC 5V ± 5%
Output Signal TTL TTL 422 422 TTL TTL 422 422






Installation Dimensions






VS10  Series

Dro Readout Glass Scale Linear Encoder Cnc Resolution 5um 1um 4

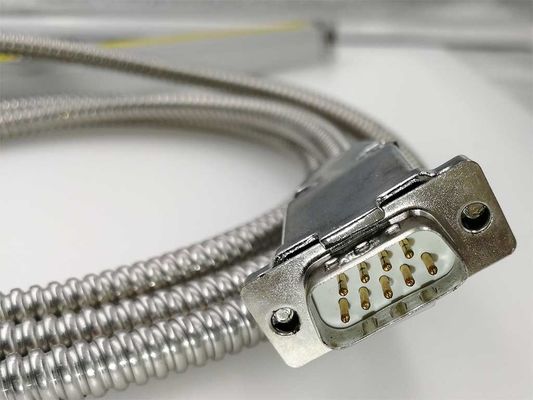

Connector interface






DSUB 9PIN

Dro Readout Glass Scale Linear Encoder Cnc Resolution 5um 1um 5

PIN TTL 422A
Signal Cable Signal Cable
1 —— —— A- Yellow
2 0V Orange 0V White
3 —— —— B- Red
4 GND GND GND GND
5 —— —— R- Black
6 A Yellow A Green
7 5V Red 5V Brown
8 B Green B Blue
9 R Brown R Grey





DIN 7PIN

Dro Readout Glass Scale Linear Encoder Cnc Resolution 5um 1um 6


PIN Cable TTL
1 Orange 0V
2 —— ——
3 Yellow A
4 Green B
5 Red 5V
6 Brown R
7 Ground GND
Case Ground GND













100% Laser calibration

Dro Readout Glass Scale Linear Encoder Cnc Resolution 5um 1um 7

All linear encoders are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.

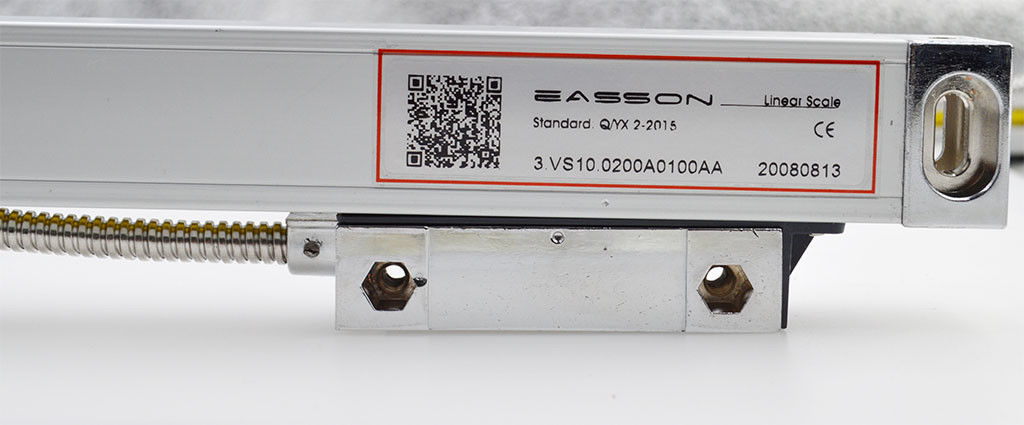

Accuracy report in QR code



Each linear encoder is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
