|Name:||Lathe Machine Dro||Keyword:||Glass Encoder|
|Display Resolution:||5 µm||Meas. Length:||50-500 Mm|
|Warranty:||13 Months||Power:||DC 5V|
|Output Signal:||TTL||Usage:||Small Lathe Machine|
50 500mm Micro Linear Encoder,
0.02mm Micro Linear Encoder,
0.02mm Miniature Linear Scale

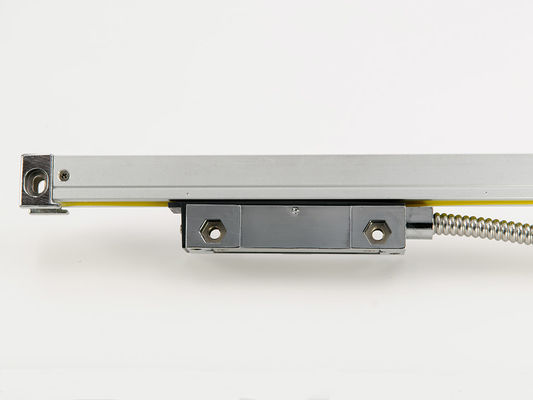

50 500 mm Micro Linear Encoder for Small Milling Drilling Lathe Machine
|Measuring Standard||Glass Scale - Grating period: 20μm (0.02mm)|
|Optical Detecting System||Transmissive Infrared System: wave length 880mm|
|Slide Carrier System||Vertical five bearings supporting system|
|Measurement Travel||50-500mm||Every 50mm per length Spec. up to 500mm|
|Power supply||DC 5V ± 5%|
Advanced Optical Measuring System
GS90 is special design for the small Lathe, Drilling and Milling machine which has the limited space to install. The slide carrier of the GS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
The GS series scales of plastic seals use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.
100% Laser calibration
All glass grating transducers are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
Each linear scale is printed with a QR code, which is convenient for users to view the accuracy report of the factory inspection.
