vmm Optical Measurement System

vmm Optical Measurement System
vmm Optical Measurement System vmm Optical Measurement System vmm Optical Measurement System

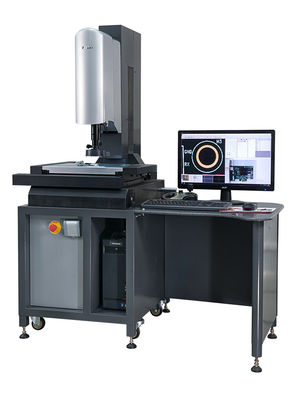

Large Image :  vmm Optical Measurement System

Product Details:
Place of Origin: P.R.China
Brand Name: Easson
Certification: CE
Model Number: SP-3020
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: Plywood Case
Delivery Time: 5 working days
Payment Terms: T/T
Supply Ability: 25 Sets per Month

vmm Optical Measurement System

Meas. Accuracy: (1.5+L/200) μm Meas. Travel: 300 X 200 X 200 Mm
Camera: High Resolution SONY CMOS Camera Display Resolution: 0.01 μm Absolute Scale
Operation Model: Automatic Repeatability: 2 μm
High Light:

vmm Optical Measurement System


CNC Optical Measurement System


vmm Optical Inspection System

Automatic Vision Video Measuring Machines With 3 Axis 0.01μm Absolute Linear Scale


Product Introduction


The SPARTAN series Video Measuriement Machines is widely used in dimensional accuracy measurement of various Aerospace, mobile phone, scientific research and teaching, electronics, hardware and plastic, precision metal stamping plate, screen printing plate, acrylic plate, LCP film, PCB board, LCDTFT, glass cover plate, TP, frame of ultra-large LCD, die cutting, backlight module group, as well as for auxiliary measurements such as reverse engineering graphic R & D, design, drawing editing,laboratory inspection, etc..



Working Principle

When putting a workpiece on the work table, its image is captured and exported to the computer through transmission or reflecting lighting of the device, then by using software functions like video, measuring together with work table translating, coordinate collecting, user can take measurements like circle, line, distance to the workpiece.



Technical Specification


Model number SP-3020 SP-4030 SP-6050
Measuring Travel(mm) 300 x 200 x 200 400 x 300 x 250 600 x 500 x 300
Overall Dimension (mm) 1200x720x1600 1250x900x1600 1350x1000x1850
Work Table Glass Size(mm) 339 x 239 x 10 439 x 339 x 12 648 x 548 x 18
Weight (kg) 280 410 1700
Max Table Load(kg) 30 30 30
Measurement Accuracy (μm) 1.5+L/200 2+L/150
Repeatability(μm) 2
Magnification Optical Magnification 0.7-4.5X, Image Magnification 20-125X
Axis Display Resolution 0.00001mm (0.01μm)
Lighting System Eight areas up light source with two laser positioning system
Operation Model Automatic, control by mouse, joystick or keyboard
Lens Automatic Zoom, automatic focus optical coaxial lens
Vision System High-resolution SONY CMOS camera




1. The X / Y / Z 3 axis of the Absolute Linear Scale is independent researched and developed, with a resolution of up to 0.01 μm

2. F3 high precision closed loop auto zoom lens.

3. The special designed motion controller of Vision measuring machine using Ethernet transmission, which is efficient and reliable system, can solve the disadvantage of unstable USB transmission.

4. High-resolution SONY CMOS sensor of image processor to ensure the image is clear and without smearing.

5. The up light source using eight areas partitioned independent control lighting system, and the light-emitting element using low-attenuation LED to extend working life.

6. Independently developed multi-function 2D and 3D measurement software, the measurement results can be output to DXF, Word, Excel, PDF and other formats.


F3 high precision closed loop auto zoom lens


vmm Optical Measurement System 0


Lens Features:

1. 3 million pixels high resolution lens

2. Fully closed-loop servo control eliminates gear transmission gap and greatly improves the repeatability of the machine.

3. Adopt the high precision and resolution ring shaped grating ruler specially developed and designed by our company for F3 Lens for full closed-loop position feedback.

4. F3 lens comes with a coaxial light source to solve the problem of insufficient illumination for deep hole measurement.

5. Fully closed-loop servo position feedback for fully automatic focusing


21 Orders Volumetric Compensation


vmm Optical Measurement System 1


Easson Video Measuring Machine used with AR series Network control System which is included 21 orders volumetric compensation, with Ultra high speed linear encoder reading and built-in EAD (absolute scale decoder) allow AR series system to use the AS-80 high precision absolute scale, providing high accuracy and high resolution measurement.


Probe Measurement


vmm Optical Measurement System 2


Vision measuring machines can cooperate with the UK Renishaw high precision touch probe for the measurement as below:


1. Height measurement: use probe to touch a standard plane and many other measuring planes, program will automatically get the height difference between measuring planes and the standard plane.

2. Plane measurement: touch at least three points in the measuring plane, right mouse click to finish, then you can get this plane's inclination and flatness.

3. Sphere measurement: use probe to evenly touch three points on the bigger diameter part of measuring sphere, then touch the top of the measuring

4. Cylinder measurement: touch three points around the cylinder at the same height, then touch another three points at another height, finally you can get the cylinder's radius and inclination.


5. Cone measurement: touch three points around the cone at the same height, then touch another three points at another height, finally you can get this cone's radius and inclination.


6. Circle measurement: use probe to evenly touch at least three points on the measuring object, right mouse click to finish, then you can measure an inner circle.



1. What is your company mainly produce?

Easson is a manufacturer in design and manufacturing precision measuring equipment, eg. CNC Vision Measurement Systems, Optical Profile Projector, Digital Readout System(DRO), CNC Linear encoder glass scale.


2. How can we guarantee quality?
We are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning,
also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.


3. How can the machine achieve the high accuracy measurement?

a) High resolution absolute linear encoder 0.01 microm

b) F3 high precision closed loop auto zoom lens with coaxial light.

c) High resolution SONY CMOS sensor of image processor CCD

d) Built in 21 orders volumetric compensation


4. Warranty:
All the products we provide 13 months( from the date of shipment )


5. Technical support:
we have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.
