Product Details:
|
| Name: | Glass Scales Cnc | Keyword: | Industrial Optical Measurement Systems |
|---|---|---|---|
| Accuracy: | (1.5+L/200) µm | Meas. Travel: | 400 X 300 X 250 Mm |
| CCD: | High Resolution SONY CMOS Camera | Display Resolution: | 0.01 μm Absolute Scale |
| Operation Model: | Automatic | Repeatability: | ±2 μm |
| High Light: | 0.01micron Optical Measuring Machine,VMM Optical Measuring Machine,VMM Optical Measuring Instruments |
||

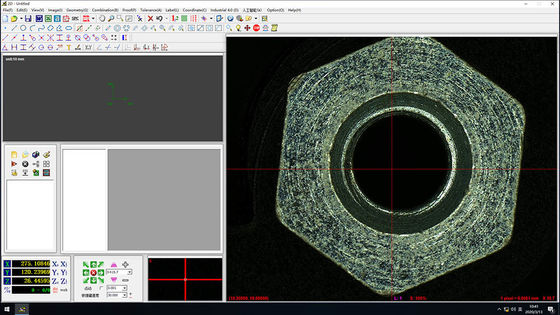

0.01 Micron Absolute Linear Scale VMM Optical Measuring Machine
Product Introduction
The AT series Automatic Video Measurement System is an effective length measuring machine constructed by the technology of precision machinery, optic, electronic etc..
Network control system AR- 3 features are as follows:
Technical Specification
| Model number | AT-3020 | AT-4030 |
| Measuring Travel(mm) | 300 x 200 x 200 | 400 x 300 x 250 |
| Dimension (mm) | 1200 x 720 x 1600 | 1250 x 900 x 1600 |
| Work Table Glass Size(mm) | 339 x 239 x 10 | 439 x 339 x 12 |
| Gross Weight (kg) | 280 | 460 |
| Max Table Load(kg) | 30 | 30 |
| Measurement Accuracy (μm) | 1.5+L/200 | |
| Repeatability | 2 μm | |
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | |
| Axis Display Resolution | 0.00001mm (0.01μm) | |
| Lighting System | Eight areas up light source with two laser positioning system | |
| Low- attenuation LED down light | ||
| Operation | Automatic control by mouse, joystick or keyboard | |
| Lens | Automatic Zoom, automatic focus optical coaxial lens | |
| Vision System | High resolution SONY CMOS global shutter camera | |
Product Features
F3 high precision closed loop auto focus auto zoom coaxial lens
Features:
1. 3 million pixels high resolution lens
2. Fully closed-loop servo control eliminates gear transmission gap and greatly improves the repeatability of the machine.
3. Adopt the high precision and resolution ring shaped grating ruler specially developed and designed by our company for F3 Lens for full closed-loop position feedback.
4. F3 lens comes with a coaxial light source to solve the problem of insufficient illumination for deep hole measurement.
5. Fully closed-loop servo position feedback for fully automatic focusing
21 Orders Volumetric Compensation
Easson Vision Measurement Machine used with AR series Network control System which is included 21 orders volumetric compensation, with Ultra high speed linear encoder reading and built-in EAD (absolute code decoder) allow AR series system to use our AS-80 high precision absolute scale, providing high accuracy and high resolution measurement.
Easson Measurement Technology Ltd. was established since 1995, is a high-tech enterprise for over 20 years in design and manufacturing precision measuring equipment, such as Video Measuring Systems, profile projector, DRO(counter), linear glass ruler, CNC linear encoder;
Easson is one of the few companies in this industry that equipped with master mask manufacturing facilities, all master mask of our absolute linear grating are built in house and with our registered trademark to prevent being illegal copied.
FAQs
1. How can I choose the most suitable Video Measurement Machine?
Easson professional team will give you the best suggestion as long as you provide the details what you need to measure the parts.
2. How can we guarantee quality?
We are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning, also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.
3. Delivery term?
Normally have machine stock, if not, Manual machine is 7 working days, CNC machine is 15 days.
4. How can the machine achieve the high accuracy measurement?
5. Warranty:
All the products we provide 13 months( from the date of shipment )
6. Technical support
We have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.
7. Machine Packing?
Our machine are packed by standard export plywood case ( fumigation free ).
