SP3020 Vmm Video Measuring Machines by 0.01um 3 Axis Absolute Linear Scale

SP3020 Vmm Video Measuring Machines by 0.01um 3 Axis Absolute Linear Scale
SP3020 Vmm Video Measuring Machines by 0.01um 3 Axis Absolute Linear Scale
SP3020 Vmm Video Measuring Machines by 0.01um 3 Axis Absolute Linear Scale SP3020 Vmm Video Measuring Machines by 0.01um 3 Axis Absolute Linear Scale SP3020 Vmm Video Measuring Machines by 0.01um 3 Axis Absolute Linear Scale SP3020 Vmm Video Measuring Machines by 0.01um 3 Axis Absolute Linear Scale SP3020 Vmm Video Measuring Machines by 0.01um 3 Axis Absolute Linear Scale

Large Image :  SP3020 Vmm Video Measuring Machines by 0.01um 3 Axis Absolute Linear Scale

Product Details:
Place of Origin: P.R.China
Brand Name: Easson
Certification: CE
Model Number: SP-3020
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: Plywood Case
Delivery Time: 5 working days
Payment Terms: T/T
Supply Ability: 25 Sets per Month

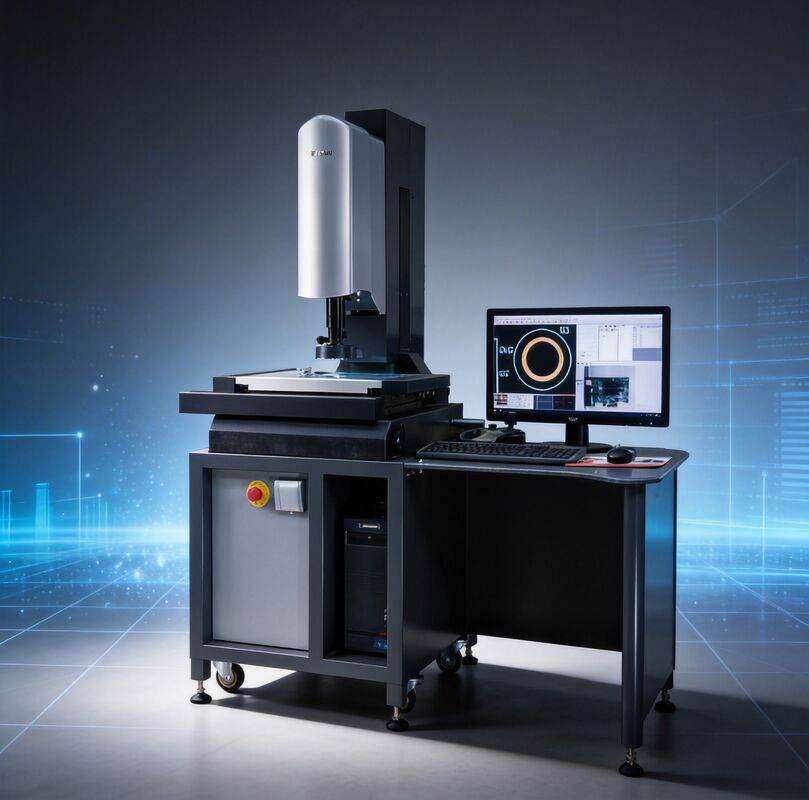

SP3020 Vmm Video Measuring Machines by 0.01um 3 Axis Absolute Linear Scale

Description
Name: Video Measuring Machine Keyword: Video Measuring System
Meas.Accuracy: (1.5+L/200) μm Meas. Travel: 300 X 200 X 200 Mm
CCD: High Resolution SONY CMOS CCD Display Resolution: 0.01μm Absolute Scale
Operation Model: Automatic Repeatability: 0.002mm
High Light:

Vmm Vision Video Measuring Machines

,

SP3020 Vision Video Measuring Machines

,

SP 3020 Vmm Automation Vision Systems

SP-3020 Automatic Vision Video Measuring Machines With 3 Axis 0.01μm Absolute Linear Scale



Device Applications




SPARTAN 3020 Video Measuring Machine is widely used in various precision electronics, wafer technology, cutting tools, plastics, springs, stamping parts, connectors, molds, military, two-dimensional copying, drawing, engineering development, metal plastics, PCB boards , Conductive rubber, powder metallurgy, screws, watch parts, mobile phones, pharmaceutical industry, optical fiber devices, automotive engineering, aerospace, universities, scientific research institutes and other fields have a wide range of applications.



Working Principle


When putting a workpiece on the work table, its image is captured and exported to the computer through transmission or reflecting lighting of the device, then by using software functions like video, measuring together with work table translating, coordinate collecting, user can take measurements like circle, line, distance to the workpiece.



Technical Specification




Model SP-3020 SP-4030 SP-6050
Measuring Travel(mm) 300x200x200 400x300x250 600x500x300
Overall Dimension (mm) 1200x720x1600 1250x900x1600 1350x1000x1850
Work Table Glass Size(mm) 339x239x10 439x339x12 648x548x18
Weight (kg) 280 410 1700
Max Table Load(kg) 30 30 30
Measurement Accuracy (μm) 1.5+L/200 2+L/150
Repeatability(μm) 2
Magnification Optical Magnification 0.7-4.5X, Image Magnification 20-125X
Axis Display Resolution 0.00001mm (0.01μm)
Lighting System Eight areas up light source with two laser positioning system
Operation Model Automatic, control by mouse, joystick or keyboard
Lens Automatic Zoom, automatic focus optical coaxial lens
Vision System High-resolution SONY CMOS global shutter camera



Characterisitics




1. The X / Y / Z 3 axes of the Absolute Linear Scale is independent researched and developed, with a resolution of up to 0.01 μm

2. F3 high precision closed loop auto zoom lens.

3. Special designed motion controller of Vision measuring machine using Ethernet transmission, which is efficient and reliable system, can solve        the disadvantage of unstable USB transmission.

4. High-resolution SONY CMOS sensor of image processor to ensure the image is clear and without smearing.

5. The up light source using eight areas partitioned independent control lighting system, and the light-emitting element using low-attenuation LED      to extend working life.

6. Multi-function measurement software, the measurement results can be output to DXF, Word, Excel, PDF and other formats.







F3 high precision closed loop auto zoom lens




SP3020 Vmm Video Measuring Machines by 0.01um 3 Axis Absolute Linear Scale 0SP3020 Vmm Video Measuring Machines by 0.01um 3 Axis Absolute Linear Scale 1



Combine with the high precision, high resolution ring scale developed and designed by Easson's F3 lens, full closed-loop position feedback, include the coaxial lighting function,  the image multiple repetition error caused by the gear transmission gap is eliminated to Improve the repeatability of the overall measurement.




21 Orders Volumetric Compensation



SP3020 Vmm Video Measuring Machines by 0.01um 3 Axis Absolute Linear Scale 2



Easson Vision Measurement Machine used with AR series Network control System which is included 21 orders volumetric compensation, with Ultra high speed linear encoder reading and built-in EAD (absolute scale decoder) allow AR series system to use the AS-80 high precision absolute scale, providing high accuracy and high resolution measurement.





2D / 3D Multiple Measurement




SP3020 Vmm Video Measuring Machines by 0.01um 3 Axis Absolute Linear Scale 3



Easson three series of vision measuring machines can cooperate with the UK Renishaw high-precision touch probe for 2D / 3D multiple measurement. The 3D measurement of the probe can be mixed with the 2D measurement of the imaging system. The same coordinate system is used for 2D / 3D measurement in perfect and easy combination.
