Product Details:
|
| Meas. Range: | 250 X 150 X 90 Mm | Accuracy: | ( 3+ L/100) μm |
|---|---|---|---|
| Optical Lens: | 10X, 20X, 50X In One Option | Display Resolution: | 0.001mm |
| Power Supply: | AC 220V | Angular Resolution: | 0.01 |
| High Light: | Optical Profile Projector Machine,Measurement Optical Profile Projector,Vertical Profile Projector |
||
High Accuracy Optical Measurement Machine EP-1 Vertical Optical Profile Projector
Product Description
EP series Optical Profile projector is precision and effective measuring machine in screw, Mechanic, Metal, Electronic etc.
EP series high precision optical profile projector provides accurate 2D measurement for all common geometric features such as circle, line angle and etc. All measured results can be printed out for further data processing.
EP series optical profile projector is designed for all critical dimensions measurement in mould & die making, form tool making, screw manufacturing, gear manufacturing and etc.
Operating principle
The operating principle of EP series profile projector are as follows: A work piece Y is placed on the table surface, there is an parallel ray illumination system S1 in below the work piece, the light from lamp S1 is made to be a parallel ray by the optical system K1 & C1, then the image of the work piece Y is precisely projected to a precision magnification lens O, the image then reflects through two flat mirror M1 and M2, finally projected to the screen P and become a magnified image Y'.
Since the magnified image Y' is highly precise in dimensions, operator can measure the magnified image Y' by a glass grating scale to know the dimensions of the workpiece Y.
EP series profile project equipped with a high precision digital readout system in the XY table which enable operator direct readout the dimension of the work piece with the assistance of magnified image.
The projector screen P equipped with a high precision ratatory encoder digital readout system, which enable operator can direct make angular measurement on the work piece very precisely.
Robust friction transmission system
To avoid the usual backlash problem of normal lead screw transmission system, rod base friction transmission system are used in the XY movements. This solution provides excellently smooth, sensitive and backlash free positioning that assure easy and precise measurements.
High precision linear guideway
high precision linear guideways are used in all X, Y and Z axis movements. This design provides very high straghtness movements and consequently, high measurement accuracy.
High stability machine casting
To avoid deformation caused by the internal stress of the metal casting, in addition to the usual internal stress release process ( by tempering ), all EP-1 casting are further stress released by a computer controlled vibration stress release. This process assure high dimensional stability and long lasting measuring accuracy.
ES-12P LCD DRO Measuring System Specifications:

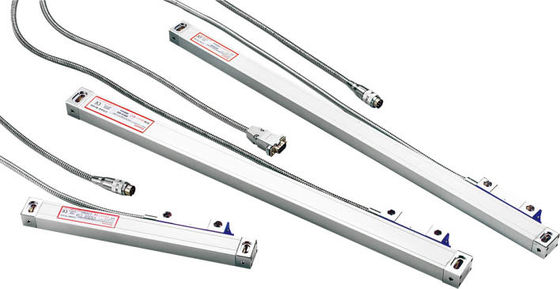

| Axis | X, Y axes linear transducer |
| A axis rotary encoder | |
| Resoultion | 0.001mm (X,Y axes) / 0.01deg.(A axis) |
| Coordiates | X,Y and Polar Coordinates Systems |
| Memory | 99 features memory; 10 coordinates memory |
| Error Comp | Linear and non-linear error compensation |
| I/O Interface | RS-232C I/O interface |
| Geometric Measurement functions |
3 points circle mesurement; |
| points measurement; | |
| 2 points distance measurenent; | |
| 2 points form a line mesurement; | |
| 2 lines intersection measurement; | |
| 4 points line intersection measurement; | |
| point line perpendicular projection |
Technical Specifications
| Model | EP-1510 | EP-2010 | EP-2515 |
| Table dimension | 300x170mm | 350x170mm | 420x250mm |
| Glass dimension | 175x127mm | 225x120mm | 290x190mm |
| X Axis travel | 150mm | 200mm | 250mm |
| Y Axis travel | 100mm | 100mm | 150mm |
| Z Axis travel(Focusing) | 90mm | ||
| X, Y axis display resolution | 0.001mm | ||
| Accuracy | (3+L/100)um | ||
| Angular measurement | 0 ~ 360° | ||
| Angular resolution | 0.01° | ||
| Contour distortion | 0.08% | ||
| Screen diamater | 315 mm | 415 mm | |
| lens magnification | 10X, 20X, 50X,one choice | ||
| Digital readout | ES - 12B | ||
