| Name: | Cnc Vision System | Keyword: | Digital Length Measuring Devices |
|---|---|---|---|
| Accuracy: | (1.5+L/200) µm | Meas. Travel: | 300 X 200 X 200 Mm |
| CCD: | High Resolution SONY CMOS Camera | Resolution: | 0.01 μm Absolute Scale |
| Operation: | Automatic | Repeatability: | ±2 μm |
| High Light: | Metrology Visual Inspection Systems,Linear Visual Inspection Systems,AT3020 Industrial Optical Measurement Systems |
||

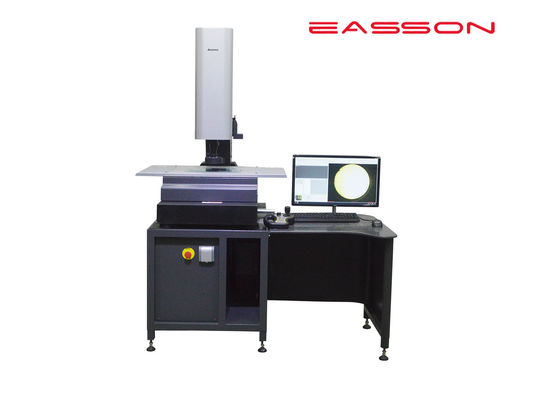

High Accuracy Granite Structure CNC Video Measuring Machine In Plastic Measurement
Product Introduction
AT -3020 CNC Automatic Vision Measurement machine is specifically designed for Batch testing 7 x 24 hours, it is with high speed, high effcient and powerful.
The 3 axis of AT series adopt the Easson AC servo motor system, recognized by the industry as one of the most reliable system, to make sure high speed and reliable measuring.
The features of AR- 3 system are as follows:
Technical Specification
| Model Type | AT-3020 | AT-4030 |
| Measuring Travel(mm) | 300 x 200 x 200 | 400 x 300 x 250 |
| Dimension (mm) | 1200 x 720 x 1600 | 1250 x 900 x 1600 |
| Work Table Glass Size(mm) | 339 x 239 x 10 | 439 x 339 x 12 |
| Weight (kg) | 280 | 460 |
| Max Table Load(kg) | 30 | 30 |
| Measurement Accuracy (μm) | 1.5+L/200 | |
| Repeatability | 2 μm | |
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | |
| Axis Display Resolution | 0.00001mm (0.01μm) | |
| Lighting System | Eight areas up light source with two laser positioning system | |
| Operation | Automatic control by mouse, joystick or keyboard | |
| Lens | Automatic Zoom, automatic focus optical coaxial lens | |
| Vision System | High resolution SONY CMOS global shutter camera | |
F3 high precision closed loop auto zoom lens
Combine with the high precision, high resolution ring scale developed and designed by Easson's F3 lens, full closed-loop position feedback, the image multiple repetition error caused by the gear transmission gap is eliminated to Improve the repeatability of the overall measurement.
F3 Lens of Z axis use a servo motor control independent up and down, without the sheet metal cover any movement.
21 Orders Volumetric Compensation
Easson Vision Measuring Machine using AR3 Network control System which included 21 orders volumetric compensation, with Ultra high speed linear encoder reading and built-in absolute code decoder of AS-80 high precision absolute scale, providing high accuracy and high resolution measurement.
2D / 3D Multiple Measurement
UK Renishaw high-precision touch probe for 2D / 3D composite measurement: Height measurement, ball measurement, inclined surface measurement, thickness measurement, flatness measurement, squareness measurement and other three-coordinate measurement functions etc.
