Product Details:
|
| Name: | Linear Scales Cnc | Keyword: | Absolute Incremental Encoder |
|---|---|---|---|
| Meas. Standard: | 0.02 Mm | Meas. Length: | 50-1250 Mm |
| Display Resolution: | 5 µm | Structure: | Vertical 5 Bearings Support |
| Applications: | High Accuracy Milling, Grinder Machine | Output Signal: | TTL |
| High Light: | 1250mm Absolute Linear Encoder,6 Springs Absolute Linear Encoder,1250mm easson digital readout |
||

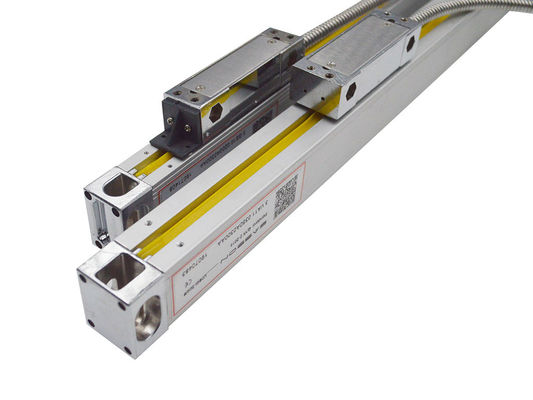

Best Quality Vertical 6 Springs Design Absolute Linear Encoder with Digital Readout Dro
Advanced Optical Measuring System
Principal of Absolute Linear Scale
The grating scale of absolute linear scale consists of two grating masks, they are Absolute Grating Mask and Incremental Grating Mask respectively. Functions of this two masks are as per follows :
Absolute Grating Mask have different mask pattern over the whole grating glass, it gives low resolution but unique position readings over the whole measurement travel.
Incremental Grating Mask is an identical repeatable mask patterns over the whole grating glass, it gives very stable and high quality electronic signal for signal interpolation to achieve very high accuracy and resolution position readings.
Absolute Coding
All absolute coding used in our Absolute Grating Mask are designed by Easson, it is 100% our in-house design and intellectual property, designed and developed for different requirements of applications.
Aging Test
Optical Linear Scale's reader head need to power on for 72 hours aging test before assemble, make sure all linear scale's quality is reliable.
| VA10 | VA11 | VA12 | VA13 | VA20 | VA21 | VA22 | VA23 | ||
| Measuring Standard | Glass Scale - Grating period: 20μm (0.02mm) | ||||||||
| Optical Detecting System | Transmissive Infrared System: wave length 880mm | ||||||||
| Slide Carrier System | Vertical five bearings supporting system | ||||||||
| Resolution | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | 5μm | 1μm | |
| Measurement Travel | 50-1200mm | Every 50mm per length Specification | Not available | ||||||
| 1300-3000mm | Not available | Every 100mm per length Specification | |||||||
| Accuracy | 50-450mm | ±3μm - ±5μm | -- | ||||||
| 500-800mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1050-2000mm | ±10μm | ±5μm | ±10μm | ±5μm | -- | ||||
| 1300-3000mm | -- | ±10μm/m | |||||||
| Repeatability | 2μm (0.002mm) | ||||||||
| Hystersis | 3μm (0.003mm) | ||||||||
| Protection | IP 53 | ||||||||
| Power supply | DC 5V ± 5% | ||||||||
| Output Signal | TTL | TTL | 422 | 422 | TTL | TTL | 422 | 422 | |
Installation Dimensions
VA10 / VA11 / VA12 / VA13 Series
Connector interface
Absolute linear scale output signal
AS series absolute linear scales offering wide variety choices of output signal interface for different cost, resolution, speed and reliability considerations. Customers can order the most suitable type of output signal interface which optimized to the best of their application and cost requirement.
100% Laser calibration
All glass scale are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
