Product Details:
|
| Name: | Milling Machine Dro Kits | Keyword: | Readout System |
|---|---|---|---|
| Color: | Grey | Shell: | Aluminum |
| Display Resolution: | 0.1 µm, 0.5 µm, 1 µm, 5 µm | Application: | Milling, Lathe, Grinder, Wire Cut |
| Power Supply: | 110V / 220V | Output Signal: | TTL |
| High Light: | Dro Digital Scale Readout,LCD Digital Scale Readout,Dro Display |
||

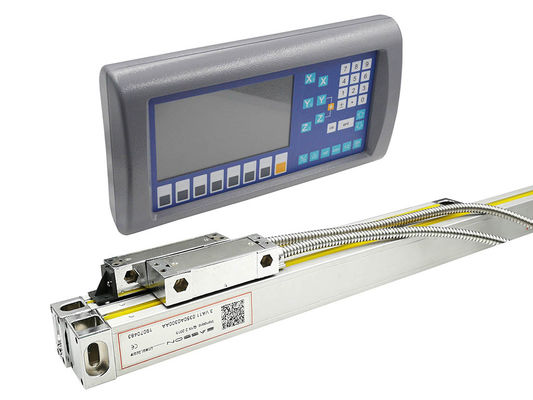

Easson High Quality Grey 3 Axis Aluminum Shell LCD Digital Readouts Display
Product Features
ES series DRO Features:
To make the DRO much more user friendly, the display message can be confirured to one of the following languages:
1. ENGLISH 2. CHINESE 3. GERMAN 4. SPANISH 5. ITALIAN 6. PORTUGUE 7. ARABIC 8. CZECH 9. FRENCH 10. HINDI 11. INDONESI 12. JAPANESE 13. KOREAN 14. PERSIAN 15. ROMANIA 16. RUSSIAN 17. SWEDEN 18. THAI 19. TURKISH 20. VIETNAM
Ultra Low Temperature Rise Transformer
Easson all Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC testing.
EMC Testing equipment
To ensure all Easson's Digital readout products can be pass the standard EMC testing, we have a complete set of EMC test esd immunity tester. Make sure the digital readout system have been to conforms to relevant standards for EMC as details below:
IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )
Aging Test
Easson DRO must to do the aging test to make sure all couting reading correctly, high temperature test and load test for 72 hours before QC procedure.
Technical Specification
| Model | ES-8C | ||
| Axis number | Three Axis | ||
| Axis Display | 0.1 μm, 0.5 μm, 1 μm, 5 μm | ||
| Signal Output | TTL | ||
| Voltage Range | AC 110 V - 220 V / 50Hz - 60Hz | ||
| Gross Weight(KG) | 3.5 | ||
|
Input frequency |
2 MB Hz | ||
| Operation Keyboard | Light touch buttons | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||
| Inputs | 3 Linear Scale | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 |
||
Basic parameter is included as below:
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Clear Zero |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| Smooth “R” Function |
| Linear Error Compensation |
| Non Linear Error Compensation |
| INCL Function |
| Axis Speed Display |
ES series DRO advanced Functions: Non-linear error compensation
Advanced functions for Milling machine
Connector interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| TTL Signal | --- | 0V | --- | GND | --- | A | 5V | B | R |
| Cable | --- | Orange | --- | Ground | --- | Yellow |
FAQ
1. Q: Did you accept OEM customized service?
A: Of course, we can provide not only typical products but also the products customized to customer's request based on the order quantity.
2. Q: What is your company mainly produce?
A: We are mainly produce Vision Measurement Machine, Optical Profile Projector, Digital Readout System(Counter), Linear encoder glass scale.
