Product Details:
|
| Name: | Optical Inspection System | Keyword: | Optical Measurement |
|---|---|---|---|
| Meas. Accuracy: | (2+L/150) μm | Meas. Length: | 600 X 500 X 300 Mm |
| CCD: | High Resolution SONY CMOS Camera | Linear Encoder: | 0.01 μm Absolute Scale |
| Operation: | Automatic | Repeatability: | ± 2 μm |
| High Light: | Oversize Travel Optical Measuring Machine,CNC Optical Measuring Machines,SP 6050 Vmm Measurement unit |
||

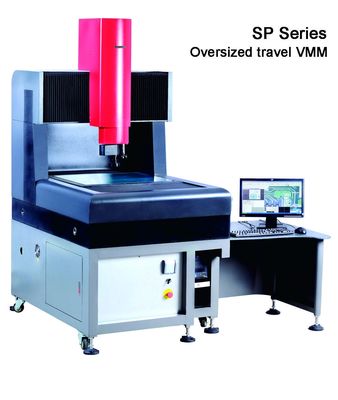

Oversize Travel CNC Automatic Vision Measurement System Optical Measuring Machine
Product Introduction
The SPARTAN series Vision Measurement System is designed specifically for large scale repeated measuring, it is with high speed, high effciency and powerful function. The three axis of SP series adopt the Easson AC servo motor system, recognized by the industry as one of the most reliable system, to make sure high speed and reliable measuring.
It is mainly a 2D measuring instrument, but it can also be used as a video measuring system for a 3D measuring, this device will enable the user to make contrast between real objects and designs, it can also make the purpose of measuring, inspecting, compensating and reverse engineering design all achieved in one machine.
Working Principle
When putting a workpiece on the work table, its image is captured and exported to the computer through transmission or reflecting lighting of the device, then by using software functions like video, measuring together with work table translating, coordinate collecting, user can take measurements like ponit, line, surface to the workpiece.
Technical Specification
| Model Name | SP-3020 | SP-4030 | SP-6050 |
| Measuring Travel(mm) | 300 x 200 x 200 | 400 x 300 x 250 | 600 x 500 x 300 |
| Overall Dimension (mm) | 1200 x 720 x 1600 | 1250 x 900 x 1600 | 1350 x 1000 x 1850 |
| Work Table Glass Size(mm) | 339 x 239 x 10 | 439 x 339 x 12 | 648 x 548 x 18 |
| Gross Weight (kg) | 280 | 410 | 1700 |
| Max Table Load(kg) | 30 | 30 | 30 |
| Measuring Accuracy (μm) | 1.5+L/200 | 2+L/150 | |
| Repeatability(μm) | 2 | ||
| Image Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | ||
| Axis Display Resolution | 0.01 μm | ||
| Lighting System | Eight areas up light source with two laser positioning system | ||
| Operation Model | Automatic, control by mouse, joystick or keyboard | ||
| Lens | Automatic Zoom, automatic focus optical coaxial lens | ||
| Video System | High-resolution SONY CMOS global shutter camera | ||
Characterisitics
a). The X / Y / Z three axes of the Absolute Linear Scale is independent researched and developed, with a resolution of up to 0.01 μm
b). F3 high precision closed loop auto zoom lens.
c). The special designed motion controller of Vision measuring machine using Ethernet transmission, which is efficient and reliable system, can solve the disadvantage of unstable USB transmission.
d). High-resolution SONY CMOS sensor of image processor to ensure the image is clear and without smearing.
e). The up light source using eight areas partitioned independent control lighting system, and the light-emitting element using low-attenuation LED to extend working life.
f). Independently developed multi-function 2D and 3D measurement software, the measurement results can be output to DXF, Word, Excel, PDF and other formats.
Products
F3 high precision closed loop auto zoom coaxial lens
Combine with the high-precision, high-resolution ring scale developed and designed by Easson's F3 lens, full closed-loop position feedback, the image multiple repetition error caused by the gear transmission gap is eliminated to Improve the repeatability of the overall measurement.
The three Axis of SPARTAN series adopt the AC servo motor system, recognized by the industry as one of the most reliable system, to make sure high speed and reliable measuring.
21 Orders Volumetric Compensation
Easson Vision Measurement System used with AR series Network control System which is included 21 orders volumetric compensation, with Ultra high speed linear scale reading and built-in EAD (absolute scale decoder) which allow AR series system to use AS-80 high precision absolute scale, providing high accuracy and high resolution measurement.
FAQ
1. Who we are?
Easson is a manufacturer in design and manufacturing precision measuring equipment, eg. CNC Vision Measurement Systems, Optical Profile Projector, Digital Readout System(DRO), CNC Linear encoder glass scale.
2. How can we guarantee quality?
We are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning,
also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.
3. How can the machine achieve the high accuracy measurement?
a) High resolution absolute linear encoder 0.01 microm
b) F3 high precision closed loop auto zoom lens with coaxial light.
c) High resolution SONY CMOS sensor of image processor CCD
d) Built in 21 orders volumetric compensation
4. Warranty:
All the products we provide 13 months( from the date of shipment )
5. Technical support:
we have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.
6. Delivery:
Production time is 30 days, Seafreight shipment time 28 days.
7. Payment:
Default is 100% T/Tpayment before shipment, for other payment terms, welcome to contact us.
