3 Axis 0.01um Linear Encoder Vmm Measuring Machine

3 Axis 0.01um Linear Encoder Vmm Measuring Machine
3 Axis 0.01um Linear Encoder Vmm Measuring Machine
3 Axis 0.01um Linear Encoder Vmm Measuring Machine 3 Axis 0.01um Linear Encoder Vmm Measuring Machine 3 Axis 0.01um Linear Encoder Vmm Measuring Machine 3 Axis 0.01um Linear Encoder Vmm Measuring Machine

Large Image :  3 Axis 0.01um Linear Encoder Vmm Measuring Machine

Product Details:
Place of Origin: P.R.China
Brand Name: Easson
Certification: CE
Model Number: SP-3020
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: Plywood Case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 10 Sets per Month

3 Axis 0.01um Linear Encoder Vmm Measuring Machine

Description
Name: Digital Linear Measurement Tool Keyword: Digital Linear Measuring Devices
Meas. Accuracy: (1.5+L/200) μm Meas. Travel: 300 X 200 X 200 Mm
Camera: High Resolution SONY CMOS Camera Resolution: 0.01 μm Absolute Linear Scale
Operation Model: Automatic Repeatability: ± 2 μm
High Light:

Linear Encoder Vmm Measuring Machine

,

3 Axis Vmm Measuring Machines

,

0.01micron Linear Measuring Systems

High Efficient Automatic Vision Measuring System With 3 Axis 0.01μm Linear Encoder



Product Introduction




The SPARTAN series CNC Automatic Vision Measurement System is designed specifically for large scale repeated measuring, it is with high speed, high effcient and powerful.



The 3 axis of SP series adopt the Easson AC servo motor system, recognized by the industry as one of the most reliable system, to make sure high speed and reliable measuring.



It widely used in dimensional accuracy measurement of various metal, mobile phone, scientific research, electronics, hardware and plastic, precision metal stamping plate, screen printing plate, acrylic plate, LCP film, PCB board, LCDTFT, glass cover plate, TP, frame of ultra-large LCD, die cutting, backlight module group, as well as for auxiliary measurements such as reverse engineering graphic R & D, design, drawing editing,laboratory inspection, etc..



Working Principle

When putting a workpiece on the work table, its image is captured and exported to the computer through transmission or reflecting lighting of the device, then by using software functions like video, measuring together with work table translating, coordinate collecting, user can take measurements like ponit, line, surface to the workpiece.



Technical Specification




Model SP-3020 SP-4030 SP-6050
Measuring Travel(mm) 300 x 200 x 200 400 x 300 x 250 600 x 500 x 300
Overall Dimension (mm) 1200 x720 x 1600 1250 x 900 x 1600 1350 x 1000 x 1850
Work Table Glass Size(mm) 339 x 239 x 10 439 x 339 x 12 648 x 548 x 18
Weight (kg) 280 410 1700
Max Table Load(kg) 30 30 30
Measurement Accuracy (μm) 1.5+L/200 2+L/150
Repeatability(μm) 2
Magnification Optical Magnification 0.7-4.5X, Image Magnification 20-125X
Axis Display Resolution 0.00001mm (0.01μm)
Lighting System Eight areas up light source with two laser positioning system
Operation Model Automatic, control by mouse, joystick or keyboard
Lens Automatic Zoom, automatic focus optical coaxial lens
Vision System High-resolution SONY CMOS global shutter camera



Characteristics

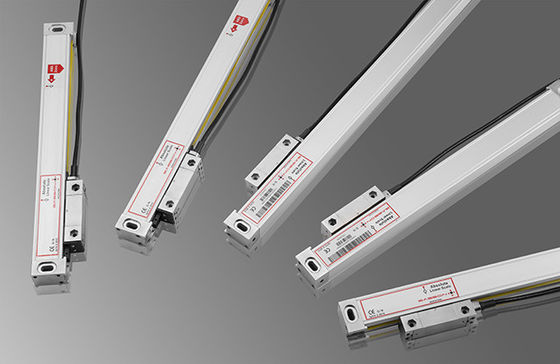

1. The X / Y / Z three axes of the Absolute Linear Scale is independent researched and developed, with a resolution of up to 0.01 μm

2. F3 high precision closed loop auto zoom lens.

3. The special designed motion controller of Vision measuring machine using Ethernet transmission, which is efficient and reliable system, can solve the disadvantage of unstable USB transmission.

4. High-resolution SONY CMOS sensor of image processor to ensure the image is clear and without smearing.

5. The up light source using eight areas partitioned independent control lighting system, and the light-emitting element using low-attenuation LED to extend working life.

6. Independently developed multi-function 2D and 3D measurement software, the measurement results can be output to DXF, Word, Excel, PDF and other formats.




F3 high precision closed loop auto zoom lens



3 Axis 0.01um Linear Encoder Vmm Measuring Machine 03 Axis 0.01um Linear Encoder Vmm Measuring Machine 1



Lens Features:



1. 3 million pixels high resolution lens

2. Fully closed-loop servo control eliminates gear transmission gap and greatly improves the repeatability of the machine.

3. Adopt the high precision and resolution ring shaped grating ruler specially developed and designed by our company for F3 Lens for full closed-loop position feedback.

4. F3 lens comes with a coaxial light source to solve the problem of insufficient illumination for deep hole measurement.

5. Fully closed-loop servo position feedback for fully automatic focusing



Three Axis of SPARTAN machine adopt the AC servo motor system, recognized by the industry as one of the most reliable system, to make sure high speed and reliable measuring.



3 Axis 0.01um Linear Encoder Vmm Measuring Machine 2





21 Orders Volumetric Compensation






3 Axis 0.01um Linear Encoder Vmm Measuring Machine 3

Easson Vision Measurement Machine used with AR series Network control System which is included 21 orders volumetric compensation, with Ultra-high-speed linear encoder reading and built-in EAD (absolute scale decoder) allow AR series system to use our  AS-80 high precision absolute scale, providing high accuracy and high resolution measurement.



2D / 3D Multiple Measurement




3 Axis 0.01um Linear Encoder Vmm Measuring Machine 4



Vision measuring machines can cooperate with the UK Renishaw high precision touch probe for 2D / 3D multiple measurement. Function features: Height measurement, Plane measurement, Sphere measurement, Cylinder measurement, Cone measurement, Inner circle measurement, Inner cylinder measurement etc.



FAQs


1. Who we are?

Easson is a manufacturer in design and manufacturing precision measuring equipment, eg. CNC Vision Measurement Systems, Optical Profile Projector, Digital Readout System(DRO), CNC Linear encoder glass scale.



2. How can we guarantee quality?

We are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning, also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.



3. How can the machine achieve the high accuracy measurement?

a) High resolution absolute linear encoder 0.01 microm

b) F3 high precision closed loop auto zoom lens with coaxial light.

c) High resolution SONY CMOS sensor of image processor CCD

d) Built in 21 orders volumetric compensation



4. Warranty:
All the products we provide 13 months( from the date of shipment )



5. Technical support:
we have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.



6. Payment:
Default is 100% T/Tpayment before shipment, if you need other request for the payment terms, welcome to contact us.
