Product Details:
|
| Color: | Grey | Material: | ABS Plastic |
|---|---|---|---|
| Display Resolution: | 0.1µm, 0.5µm, 1µm, 5µm | Application: | Milling, Lathe, Grinder, Boring, Wire Cut |
| Power Supply: | 110V / 220V | Output Signal: | TTL |
| High Light: | Linear Scale Digital Readout System,Bridgeport Digital Readout System,Linear Scale Readout |
||
Product Features
ES series DRO feature:
The Autotex is used as the key membrance of ES series, it offer excellent chemical resistance to most commonly used industry solvent and excellent switch life, switch life of expected to be 100,000 times.
Ultra Low Temperature Rise Transformer
Easson all Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC.
To reduce the total heat generation inside the ES DRO in order to obtain long working life. An ultra low temperature rise transformer that construct with very high permeability icron core is used, which effectively bring temperature rise to only about 5℃.
EMC Testing equipment
To Make sure all Easson DRO products can be pass the standard EMC testing, we have a complete set of EMC test esd immunity tester.
Ensure the digital readout system have been to conforms to relevant standards for EMC as details below:
IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )
Aging Test Room
Aging test can verify whether the process, design, material and other aspects are defective. Therefore, we can using this testing promptly revises the product design to improve product quality and service life.
Technical Specification

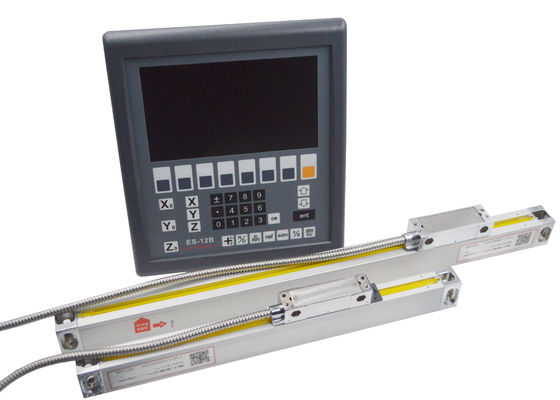

| Model | ES-12B | ||
| Axis number | Three Axis | ||
| Axis Display | 0.1μm, 0.5μm, 1μm, 5μm | ||
| Signal Output | TTL | ||
| Voltage Range | AC110 V - 220 V / 50Hz - 60Hz | ||
| Gross Weight | 3.5 KGS | ||
|
Input frequency |
2 MB Hz | ||
| Operation Keyboard | Light touch buttons | ||
| Operating temperature | 0℃ - 45℃ | ||
| Storage temperature | -40℃ - 55℃ | ||
| Relative humidity | ≤ 95% | ||
| Inputs | 3 Linear Scale | ||
| EMC Standard |
IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
||
Basic parameter is included as below:
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Zero |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| Smooth “R” Function |
| Linear Error Compensation |
| Non Linear Error Compensation |
| INCL Function |
| Axis Speed Display |
ES series DRO advanced Functions: Non-linear error compensation
Advanced functions for Milling machine
Connector interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| TTL Signal | --- | 0V | --- | GND | --- | A | 5V | B | R |
| Cable | --- | Orange | --- | Ground | --- | Yellow | Red | Green | Brown |
