Product Details:
|
| Name: | Cnc Measuring Machine | Keyword: | Cnc Video Measuring System |
|---|---|---|---|
| Accuracy: | (1.5+L/200) µm | Meas. Travel: | 300 X 200 X 200 Mm |
| CCD: | High Resolution SONY CMOS Camera | Resolution: | 0.01 μm Absolute Scale |
| Operation: | Automatic | Repeatability: | ±2 μm |
| High Light: | 3 axis Vmm Measuring Machine,Granite Vmm Measuring Machine,AT3020 Cnc Video Measuring System |
||

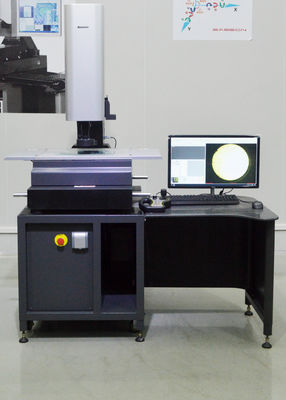

High Accuracy Granite Structure CNC Vision Measuring System In Optic Measurement
Product Introduction
AT CNC Automatic Vision Measurement System is designed specifically for large scale repeated measuring, it is with high speed, high effcient and powerful.
The 3 axis of AT series adopt the Easson AC servo motor system, recognized by the industry as one of the most reliable system, to make sure high speed and reliable measuring.
The features in the VMM control system of AR- 3 are as follows:
Technical Specification
| Model Type | AT-3020 | AT-4030 |
| Measuring Travel(mm) | 300 x 200 x 200 | 400 x 300 x 250 |
| Dimension (mm) | 1200 x 720 x 1600 | 1250 x 900 x 1600 |
| Work Table Glass Size(mm) | 339 x 239 x 10 | 439 x 339 x 12 |
| Weight (kg) | 280 | 460 |
| Max Table Load(kg) | 30 | 30 |
| Measurement Accuracy (μm) | 1.5+L/200 | |
| Repeatability | 2 μm | |
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | |
| Axis Display Resolution | 0.00001mm (0.01μm) | |
| Lighting System | Eight areas up light source with two laser positioning system | |
| Operation | Automatic control by mouse, joystick or keyboard | |
| Lens | Automatic Zoom, automatic focus optical coaxial lens | |
| Vision System | High resolution SONY CMOS global shutter camera | |
F3 high precision closed loop auto zoom lens
Lens Features:
1. Adopt the high precision and resolution ring shaped grating ruler specially developed and designed by our company for F3 Lens for full closed-loop position feedback.
2. Fully closed-loop servo control eliminates gear transmission gap and greatly improves the repeatability of the machine.
3. 3 million pixels high resolution lens
4. F3 lens comes with a coaxial light source to solve the problem of insufficient illumination for deep hole measurement.
5. Fully closed-loop servo position feedback for fully automatic focusing
21 Orders Volumetric Compensation
Easson Vision Measurement Machine used with AR series Network control System which is included 21 orders volumetric compensation, with Ultra high speed linear encoder reading and built-in EAD (absolute code decoder) allow AR series system to use our AS-80 high precision absolute scale, providing high accuracy and high resolution measurement.
2D / 3D Multiple Measurement
UK Renishaw high-precision touch probe for 2D / 3D composite measurement:
Height measurement, ball measurement, inclined surface measurement, thickness measurement, flatness measurement, squareness measurement and other three-coordinate measurement functions etc.
With high precision Keyence or Panasonic laser probes, it can solve the problem that images and probes can not be measured. For high speed measurement of flatness and fine concave and convex points, V-angle and high precision curved surface scanning, etc.
