Product Details:
|
| Name: | Cnc Measurement System | Keyword: | Cnc Measuring Equipment |
|---|---|---|---|
| Accuracy: | (1.5+L/200)um | Meas. Travel: | 400x300x250mm |
| Camera: | High Resolution SONY CMOS Camera | Display Resolution: | 0.01 μm Absolute Scale |
| Operation Model: | Automatic | Repeatability: | ±2 μm |
| High Light: | CNC Vmm Measuring Machine,Optical Vmm Measuring Machine,AT 4030 Vmm Cnc Measuring Equipment |
||

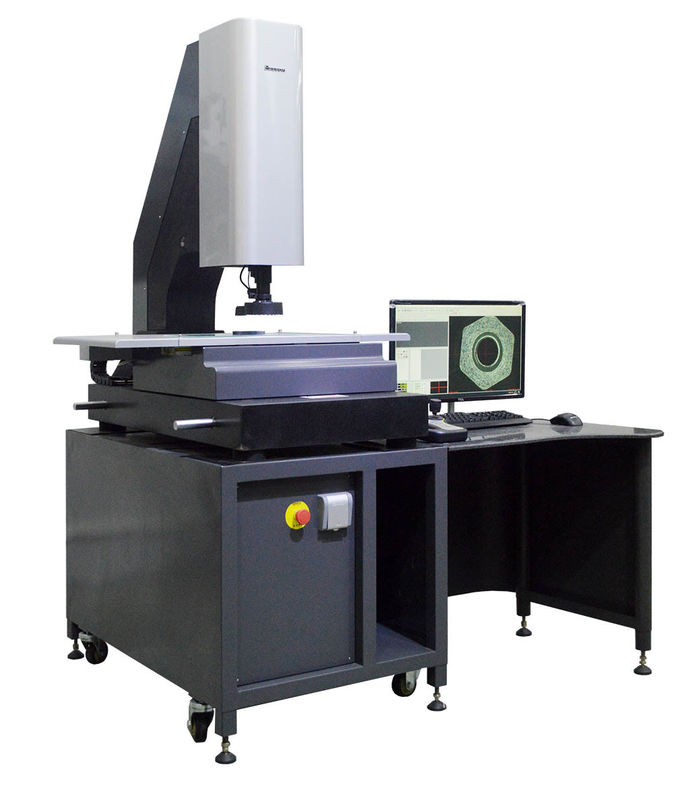

High Speed Automatic Optical CNC Vision Measurement System For QC Full Inspection
Product Introduction
The AT series CNC Automatic Vision Measurement System is designed specifically for large scale repeated measuring, it is with high speed, high effcient and powerful.
The 3 axis of AT series adopt the Easson AC servo motor system, recognized by the industry as one of the most reliable system, to make sure high speed and reliable measuring.
The features in the VMM control system of AR- 3 are as follows:
Technical Specification
| Model Type | AT-3020 | AT-4030 |
| Measuring Travel(mm) | 300 x 200 x 200 | 400 x 300 x 250 |
| Dimension (mm) | 1200 x 720 x 1600 | 1250 x 900 x 1600 |
| Work Table Glass Size(mm) | 339 x 239 x 10 | 439 x 339 x 12 |
| Weight (kg) | 280 | 460 |
| Max Table Load(kg) | 30 | 30 |
| Measurement Accuracy (μm) | 1.5+L/200 | |
| Repeatability | 2 μm | |
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | |
| Axis Display Resolution | 0.00001mm (0.01μm) | |
| Lighting System | Eight areas up light source with two laser positioning system | |
| Operation | Automatic control by mouse, joystick or keyboard | |
| Lens | Automatic Zoom, automatic focus optical coaxial lens | |
| Vision System | High resolution SONY CMOS global shutter camera | |
Features
1. X , Y , Z axis of the Absolute Linear Scale is independent researched and developed, with a resolution up to 0.01 μm.
2. F3 high precision closed loop auto zoom lens.
3. The special designed motion controller of Vision measuring machine using Ethernet transmission, which is efficient and reliable system, can solve the disadvantage of unstable USB transmission.
4. High-resolution SONY CMOS sensor of image processor to ensure the image is clear and without smearing.
5. The up light source using eight areas partitioned independent control lighting system, and the light-emitting element using low-attenuation LED to extend working life.
6. Independently developed multi-function 2D and 3D measurement software, the measurement results can be output to DXF, Word, Excel, PDF and other formats.
7. Machine can run in 24 hours continue operation.
8. 3 axis precision linear guide, precision drive system and CNC control system.
9. Precision granite machine body with high accuracy and stability.
10. New design for machine work table, in order to prevent pinching during operations
F3 high precision closed loop auto zoom lens
Combine with the high-precision, high-resolution ring scale developed and designed by Easson's F3 lens, full closed-loop position feedback, the image multiple repetition error caused by the gear transmission gap is eliminated to Improve the repeatability of the overall measurement.
21 Orders Volumetric Compensation
AR series Network control System included 21 orders volumetric compensation, with Ultra high speed linear scale reading and built-in EAD (absolute code decoder) allow AR series system to use our AS-80 high precision absolute linear scale, providing high accuracy and high resolution measurement.
2D / 3D Multiple Measurement
Vision measuring machines can cooperate with the UK Renishaw high precision touch probe for 2D / 3D multiple measurement. Function features: Height measurement, Plane measurement, Sphere measurement, Cylinder measurement, Cone measurement, Inner circle measurement, Inner cylinder measurement etc.
