Product Details:
|
| Keyword: | 2d Measurement System | Name: | Visual Measuring Machine |
|---|---|---|---|
| Apply For: | Machinery, Optics, Testing Department | Operation: | Three Axis Manual |
| Display Resolution: | 0.5 μm | Accuracy: | (3+L/200)µm |
| Power Supply: | 220V 50Hz | Meas. Range: | 250 X 150 X 150mm |
| High Light: | Vmm Video Measuring System,Easson Video Measuring System,C2515 Easson Video Measuring Machine |
||

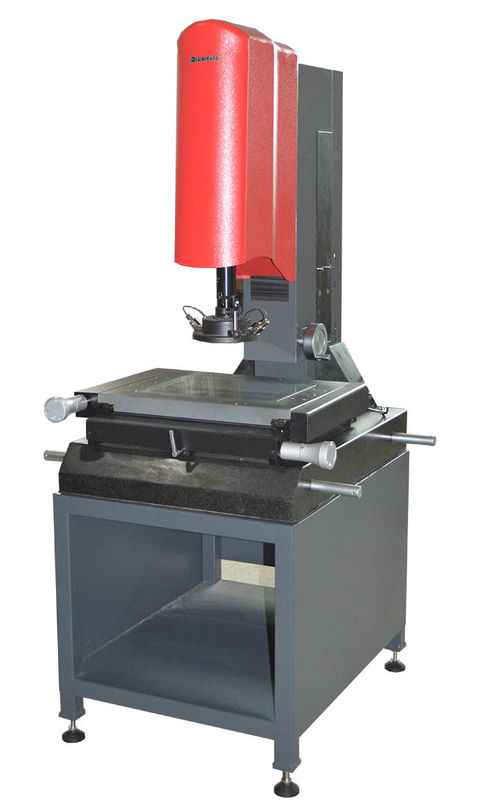

2D Manual Optical Easson Vmm Video Measuring System Instrument Machine
Product Introduction
The Video Measuring Systems is a precise and effective non-contact optical measuring instrument. It is composed of a series of accessories, such as color CCD Camera & adapter, zoom lens , linear encoder, high precision worktable, electronic motor, PC and monitor.
The 2D Measuring software is able to control the brightness of 8 areas light source. Word, Excel report output immediately, dxf drawing input quickly. It improves the operator’s working effectively and reduce the enterprise’s cost of human resource obviously.
It is mainly applied in 2D measurement field, such as: PCB, mobile phone fittings, linker, machine fitting, precision fixture, and it can measure height in video solution too.
Technical Specification
| Model Name | C-2515 | C-3020 | C-4030 |
| Measuring Range(mm) | 250 × 150 × 150 | 300 x 200 x 200 | 400 x 300 x 250 |
| Overall Dimension (mm) | 1000 × 600 × 1400 | 1200 x 720 x 1600 | 1200 x 720 x 1600 |
| Work Table Glass Size(mm) | 289 x 189 x 10 | 339 x 239 x 10 | 439 x 339 x12 |
| Weight (kg) | 170 | 280 | 410 |
| Max Table Load(kg) | 20 | 20 | 20 |
| Measurement Accuracy | (3+L/200) μm | ||
| Repeatability | 0.002 mm | ||
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | ||
| Encoder Resolution | 0.5 μm | ||
| Lighting System | Eight areas up light source with two laser positioning system | ||
| Operation Mode | X Y Z Axis manual | ||
| Lens | Manual optical lens | ||
| Vision System | High-resolution SONY CMOS global shutter camera | ||
Characterisitics
1. Three axis of the Absolute Linear Encoder is developed by Easson, with a resolution of up to 0.5 microns
2. High precision Manual optical lens.
3. High resolution SONY CMOS sensor image processing, make the image is clear and without smearing.
4. The surface light source using eight areas partitioned independent control lighting system, and the light-emitting element using low-attenuation LED for long service life.
5. Independently developed powerful multi function Easson 2D measurement software, the measurement results can be output to DXF, Word, Excel, PDF and other formats.
Products
Easson video measuring instrument is fully developed and produced independently. All key parts on the image measuring instrument, such as grating linear encoder, lens, motion control system, measurement software, etc. are independently developed and produced by our company.
VMM uses high-precision marble as the bracket of the machine body, coupled with a high-precision table. The XYZ axis is equipped with an optical linear scale measurement system with a resolution of 0.5 micron. The XYZ axis has a measurement accuracy of (3 + L / 200) μm.
2D / 3D Multiple Measurement
Easson three series of vision measuring machines can cooperate with the UK Renishaw high-precision touch probe for 2D / 3D multiple measurement. The 3D measurement of the probe can be mixed with the 2D measurement of the imaging system. The same coordinate system is used for 2D / 3D measurement in perfect and easy combination.
FAQ
Q. When can I get the price of the vision measurement machines spare parts?
A. Within one day after received the inquiry. If you need urgently to get the quotation, please call us or tell us in your email so that we will regard your inquiry priority.
Q. How about the 2D sofrware operation?
A. Easson 2D measurement software with a friendly and muilt function window, output measuring result to general CAD software for comparing.
Q. What advantage for the Absolute Linear Scale?
A. There are three main points:
1. High Accuracy: Easson VMM Linear Encoder use the AS series Absolute Linear Scale, the Linear Scale accuracy within ± 2μm ( total length ), and zero backlash, much more linear error, ensure it can provide much more measuring accuracy.
2. High Resolution Reading Position Data: AS-80 series Absolute Linear Scale can use CPE-bus Serial Comunication connector, with 0.01 μm resolution scale to read the position data at high magnification ( image pixel size less than 1 μm ), can greatly improve the measuring accuracy to the theoretical limit of 1 pixel.
3. Convenience: Operater can be very easy to operate finding the origin reference point, just simple move the position about 20 mm, and VMM machine coordinate always the same place.
