Manual Inspection Systems Video Measuring Systems with 0.5 μm Resolution Scale
Product Introduction
The Video Measuring Systems is efficient 2D measuring instrument integrating metals, mold and electronics. Easson's measurement machine all use the special version high resolution AS series Absolute linear scale for the machine measuring standard.
Working Principle
Vision measuring systems is based on machine vision, such as automatic edge extraction, automatic alignment, automatic focus, measurement synthesis, image synthesis and other artificial intelligence technologies. It has the functions of automatic measurement of point where to go, automatic measurement of CNC position, and automatic learning of batch measurement. Image map target guidance, full-field eagle-eye zoom and other excellent functions.
Meanwhile, based on the auto-focus process under the precise control of machine vision and micron, it can meet the needs of auxiliary measurement under clear images, and touch probe can also be added to complete coordinate measurement. Excellent software performance that supports spatial coordinate rotation, batch measurement and SPC result classification can be carried out when workpieces are randomly placed or fixtures are used.
Technical Specification
| Model Name | C-2515 | C-3020 | C-4030 |
| Measuring Range(mm) | 250 × 150 × 150 | 300 x 200 x 200 | 400 x 300 x 250 |
| Overall Dimension (mm) | 1000 × 600 × 1400 | 1200 x 720 x 1600 | 1200 x 720 x 1600 |
| Work Table Glass Size(mm) | 289 x 189 x 10 | 339 x 239 x 10 | 439 x 339 x12 |
| Weight (kg) | 170 | 280 | 410 |
| Max Table Load(kg) | 20 | 20 | 20 |
| Measurement Accuracy | (3+L/200) μm | ||
| Repeatability | 0.002 mm | ||
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | ||
| Encoder Resolution | 0.5 μm | ||
| Lighting System | Eight areas up light source with two laser positioning system | ||
| Operation Mode | X Y Z Axis manual | ||
| Lens | Manual optical lens | ||
| Vision System | High-resolution SONY CMOS global shutter camera | ||
Characterisitics
1. Three axis of the Absolute Linear Encoder is developed by Easson, with a resolution of up to 0.5 microns
2. High precision Manual optical lens.
3. High resolution SONY CMOS sensor image processing, make the image is clear and without smearing.
4. The surface light source using eight areas partitioned independent control lighting system, and the light-emitting element using low-attenuation LED for long service life.

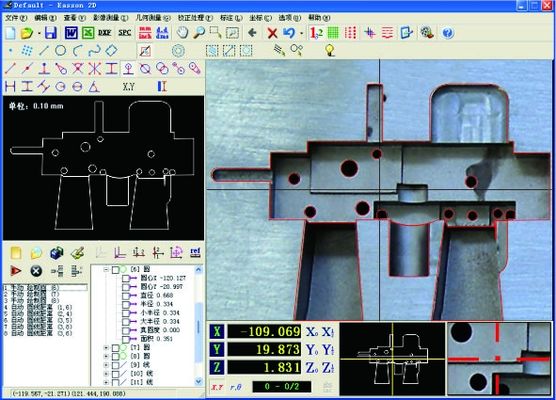

5. Independently developed powerful multi function Easson 2D measurement software, the measurement results can be output to DXF, Word, Excel, PDF and AutoCAD.
6. Base and column are made of high precision 00 grade granite structure, which is stable and reliable.
Product Details

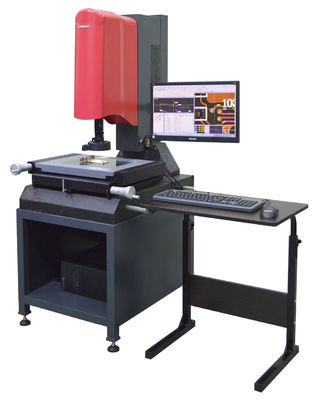

Easson video measuring instrument is fully developed and produced independently. All key parts of the vision measurement machine, such as linear encoder scale, lens, motion control system, 2D measurement software, etc. are independently developed and produced by our company.
VMM uses high precision marble as the base of the machine body, coupled with a high-precision table. The XYZ axis is equipped with an optical linear scale measurement system with a resolution of 0.5 micron, measurement accuracy is (3 + L / 200) μm.
2D / 3D Multiple Measurement
Optional accessory high-precision touch probe for 2D / 3D composite measurement:
Height measurement, ball measurement, inclined surface measurement, thickness measurement, flatness measurement, squareness measurement and other three-coordinate measurement functions etc.
FAQs
1. Who we are?
Easson is a manufacturer in design and manufacturing precision metrology equipment, Video Measuring Systems, Optical Profile Projector, Digital Readout Unit(Counter), Linear encoder glass scale.
2. How can we guarantee quality?
Easson are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning, also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.
3. How can the machine achieve the high accuracy measurement?
4. Warranty:
All the products we provide 13 months( from the date of shipment )
5. Delivery:
Normally have stock for the VMM, if out of stock, delivery time is 10 to 15 days.
6. Technical support:
we have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.
7. Payment:
Default is 100% T/Tpayment before shipment, if you need other request for the payment terms, welcome to contact us.
