Product Details:
|
| NAME: | Linear Scale Digital Readout | KEYWORD: | Linear Scale Encoder |
|---|---|---|---|
| Output Signal: | DTTL | Measurement: | 50 - 3000mm |
| Resolution: | 0.02µm | Accuracy: | ±3μm / ±5μm Within 500mm |
| Material: | ABS Plastic | Power Supply: | DC 5V |
| High Light: | Measuring Exposed Linear Encoders,Optical Exposed Linear Encoders,3000mm Optical Ruler |
||
GS65 Reflective Open Grating Optical Measuring Exposed Linear Encoders
Product Specification
| GS65 | ||
| Meas. Standard | 80μm (0.08mm) pitch grating glass | |
| Meas. System | Reflective Phased Array Optics System | |
| Reader Carriage | Non-Contact open grating carriage | |
| Resolution | 0.02μm ( 20 nanometer ) | |
| Meas. Travel | 120mm | G1: Standard length: 120mm, user cut on demand |
| 500mm | G2: Standard length: 500mm, user cut on demand | |
| 1000mm | G2: Standard length: 1000mm, user cut on demand | |
| 1200 - 3000mm | G3: Every 200mm per specification | |
| Accuracy | 50 - 500mm | ±3μm / ±5μm |
| 550 - 1000mm | ±5μm / ±10μm | |
| 1200 - 3000mm | ±10μm / m | |
| Hysteresis | Included in accuracy | |
| Max. Speed | 180m / min | |
| Supply | DC 5V ± 5% | |
| Output Signal | CPE-bus serial data interface | |
| Output Connector | DSUB 9 | |

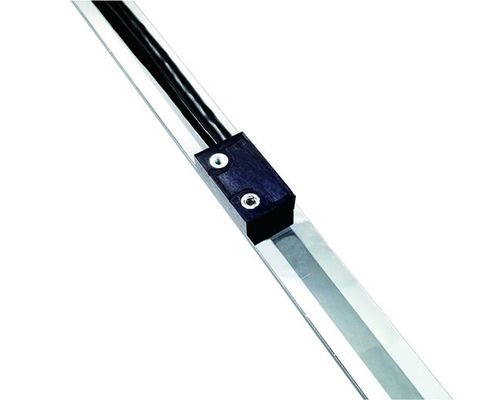

GS65 High Accuracy Reflective Open Grating Scale
Features:
1. High precision backlish free position readings
2. Exteremely easy to install
3. High resolution: 0.02μm ( 20 nanometer )
4. Maximum measuring speed up to 180m/min
5. Acceleration up to 4G
There are three choices of measurement accuracy in GS 65 series, there are ±3 μm, ±5 μm, ±10 μm
Installation Dimensions
To makes your scale installation very easy and convenience, GS65 using small reader head size;
More than that, there are two types of installation direction fixing of reader head housing available for your choice.
TYPE A
TYPE B
Grating Glass Dimension
| Glass Dimension | High(mm) | Thick(mm) | Meas. Travel(mm) |
| G1 | 6.2 | 1.0 | 120 |
| G2 | 12 | 2.0 | 500 / 1000 |
| G3 | 12 | 3.0 | 1200 - 3000 |
There are three types of different grating glass dimensions in the GS 65 series,
they are 6.2mm x 1 mm glass, 12 mm x 2 mm glass, and 12 mm x 3 mm glass.

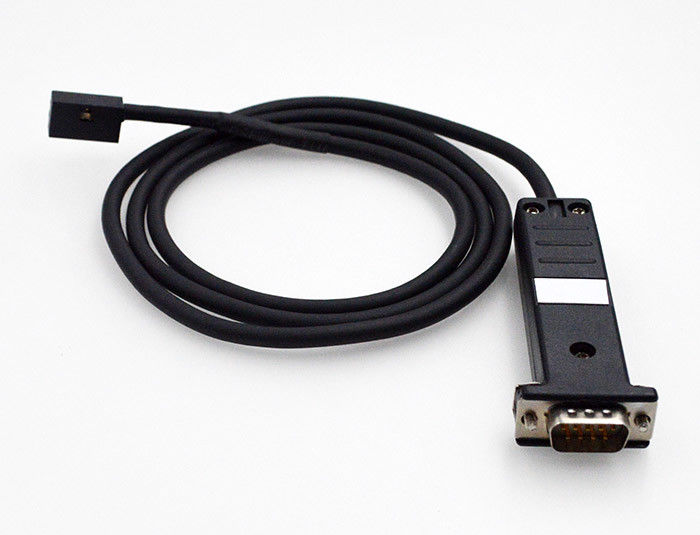

Connector interface
| PIN | TTL | |
| Signal | Cable | |
| 1 | A- | Yellow |
| 2 | 0V | White |
| 3 | B- | Red |
| 4 | GND | Silver |
| 5 | R- | Black |
| 6 | A | Green |
| 7 | 5V | Brown |
| 8 | B | Blue |
| 9 | R | Grey |
FAQs
1. Q: How can I order the reflective open grating scale?
A: You can provide our product code, also advice the specification, we can fit your request.
2. Q: Did you accept OEM customized service?
A: Of course, we can provide not only typical products but also the products customized to customer's request based on the order quantity.
3. Q: What is your company mainly produce?
A: We are mainly produce Vision Measurement Machine, Optical Profile Projector, Digital Readout System(Counter), Linear encoder glass scale. CNC linear scale
4. Q: What material you can provide for the exposed linear encoder scale grating glass?
A: Normal glass and Quartz glass
5. Q: How long can you produce the exposed linear scale?
A: Maximum 3000mm
6. Q: Warranty:
A: All the products we provide 13 months( from the date of shipment )
7. Q: Technical support:
we have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.
8. Q: Payment:
Default is 100% T/Tpayment before shipment, if you need other request for the payment terms, welcome to contact us.
