Product Details:
|
| Accuracy: | (1.5+L/200) μm | Meas. Travel: | 400 X 300 X 250 Mm |
|---|---|---|---|
| CCD Camera: | High Resolution SONY CMOS CCD | Display Resolution: | 0.01 μm Absolute Linear Scale |
| Operation Model: | Automatic | Repeatability: | ±2 μm |
| Highlight: | Video Coordinate Measuring Machine,Optical Coordinate Measuring Machine,Cmm Measurement Machine |
||
High Accuracy Optical Coordinate Measuring Instrument Vision Video Measuring System
Product Introduction
VMM Machine Features:
Compact automatic image measuring instrument; Economical general vision measurement scheme
High adaptability to a variety of measurement sensors; Flexible application scenarios
Excellent imaging & optical systems; Powerful 2D Measurement software
VMM control system of AR- 3's features are as follows:
Technical Specification
| Model Type | AT-3020 | AT-4030 |
| Measuring Travel(mm) | 300 x 200 x 200 | 400 x 300 x 250 |
| Dimension (mm) | 1200 x 720 x 1600 | 1250 x 900 x 1600 |
| Work Table Glass Size(mm) | 339 x 239 x 10 | 439 x 339 x 12 |
| Weight (kg) | 280 | 460 |
| Max Table Load(kg) | 30 | 30 |
| Measurement Accuracy (μm) | 1.5+L/200 | |
| Repeatability | 2 μm | |
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | |
| Axis Display Resolution | 0.00001mm (0.01μm) | |
| Lighting System | Eight areas up light source with two laser positioning system | |
| Operation | Automatic control by mouse, joystick or keyboard | |
| Lens | Automatic Zoom, automatic focus optical coaxial lens | |
| Vision System | High resolution SONY CMOS global shutter camera | |
Product Features
1. X , Y , Z axis of the Absolute Linear Scale is independent researched and developed, with a resolution up to 0.01 μm.
2. F3 high precision closed loop auto zoom lens.
3. The special designed motion controller of Vision measuring machine using Ethernet transmission, which is efficient and reliable system, can solve the disadvantage of unstable USB transmission.
4. High-resolution SONY CMOS sensor of image processor to ensure the image is clear and without smearing.
5. The up light source using eight areas partitioned independent control lighting system, and the light-emitting element using low-attenuation LED to extend working life.
6. Independently developed multi-function 2D and 3D measurement software, the measurement results can be output to DXF, Word, Excel, PDF and other formats.
7. Machine can run in 24 hours continue operation.
8. 3 axis precision linear guide, precision drive system and CNC control system.
9. Precision granite machine body with high accuracy and stability.
10. New design for machine work table, in order to prevent pinching during operations

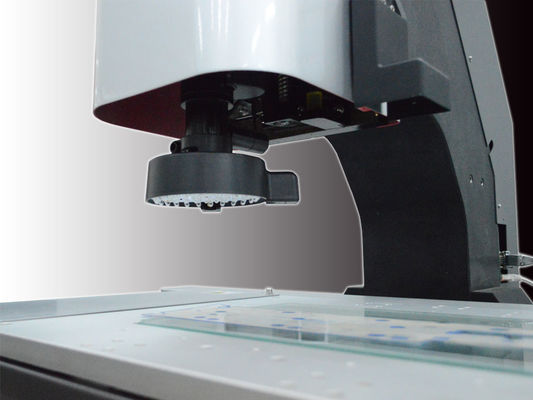

F3 high precision closed loop auto zoom lens
Features:
1. 3 million pixels high resolution lens
2. Fully closed-loop servo control eliminates gear transmission gap and greatly improves the repeatability of the machine.
3. Adopt the high precision and resolution ring shaped grating ruler specially developed and designed by our company for F3 Lens for full closed-loop position feedback.
4. F3 lens comes with a coaxial light source to solve the problem of insufficient illumination for deep hole measurement.
5. Fully closed-loop servo position feedback for fully automatic focusing
21 Orders Volumetric Compensation
Easson Vision Measurement Machine used with AR series Network control System which is included 21 orders volumetric compensation, with Ultra high speed linear encoder reading and built-in EAD (absolute code decoder) allow AR series system to use our AS-80 high precision absolute scale, providing high accuracy and high resolution measurement.
2D / 3D Multiple Measurement
Video measuring systems can cooperate with the UK Renishaw high precision touch probe for 2D / 3D multiple measurement. Function features: Height measurement, Plane measurement, Sphere measurement, Cylinder measurement, Cone measurement, Inner circle measurement, Inner cylinder measurement etc.
