Product Details:
|
| Name: | Optical Measuring Device | Keyword: | Optical Measuring Equipment |
|---|---|---|---|
| Meas. Accuracy: | (1.5+L/200) μm | Meas. Travel: | 300 X 200 X 200 Mm |
| Camera: | High Resolution SONY CMOS CCD | Resolution: | 0.01 μm Absolute Scale |
| Operation Model: | Automatic | Repeatability: | ± 2 μm |
| Highlight: | CNC Video Measuring Machines,0.01μM Video Measuring Machines,SP3020 Cnc Vision Measuring System |
||
Fast & Accurate CNC Vision Measuring Network Control Systems With 0.01μm Absolute Scale
Product Introduction
The SP series CNC Automatic Vision Measuring Systems is used in dimensional accuracy measurement of various metal, glass inspection, mobile phone, scientific research, electronics, hardware and plastic, precision metal stamping plate, screen printing plate, PCB board, as well as for auxiliary measurements such as reverse engineering graphic R & D, design, drawing editing,laboratory inspection, etc..
Technical Specification
| Model | SP-3020 | SP-4030 | SP-6050 |
| Measuring Travel(mm) | 300 x 200 x 200 | 400 x 300 x 250 | 600 x 500 x 300 |
| Overall Dimension (mm) | 1200 x720 x 1600 | 1250 x 900 x 1600 | 1350 x 1000 x 1850 |
| Work Table Glass Size(mm) | 339 x 239 x 10 | 439 x 339 x 12 | 648 x 548 x 18 |
| Weight (kg) | 280 | 410 | 1700 |
| Max Table Load(kg) | 30 | 30 | 30 |
| Measurement Accuracy (μm) | 1.5+L/200 | 2+L/150 | |
| Repeatability(μm) | 2 | ||
| Magnification | Optical Magnification 0.7-4.5X, Image Magnification 20-125X | ||
| Axis Display Resolution | 0.00001mm (0.01μm) | ||
| Lighting System | Eight areas up light source with two laser positioning system | ||
| Operation Model | Automatic, control by mouse, joystick or keyboard | ||
| Lens | Automatic Zoom, automatic focus optical coaxial lens | ||
| Vision System | High-resolution SONY CMOS global shutter camera | ||
Characterisitics

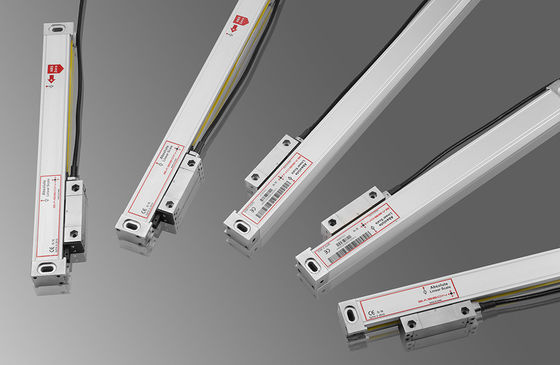

1. Three axes of the resolution 0.01 μm Absolute Linear Scale are independent researched and developed by Easson
2. F3 high precision closed loop auto zoom lens.
3. The special designed motion controller of Vision measuring machine using Ethernet transmission, which is efficient and reliable system, can solve the disadvantage of unstable USB transmission.
4. High-resolution SONY CMOS sensor of image processor to ensure the image is clear and without smearing.
5. The up light source using eight areas partitioned independent control lighting system, and the light-emitting element using low-attenuation LED to extend working life.
6. Independent developed powerful 2D Measurement software, the measurement results can be output to DXF, Word, Excel, PDF, CAD etc..
7. High precision 00 grade marble base and pillar, to ensure high stability and accuracy
AR Series Control System Features
F3 high precision closed loop auto zoom lens
Features:
1. 3 million pixels high resolution lens
2. Fully closed-loop servo control eliminates gear transmission gap and greatly improves the repeatability of the machine.
3. Full closed-loop position feedback, high definitive detented zoom lens to ensure clear image without distortion
4. F3 lens comes with a coaxial light source to solve the problem of insufficient illumination for deep hole measurement.
5. Fully closed-loop servo position feedback for fully automatic focusing
5 ring 8 area LED Cold Illumination and contour LED parallel illumination and internal intelligent light adjustment
21 Orders Volumetric Compensation
Easson Vision Measurement Machine used with AR series Network control System which is included 21 orders volumetric compensation, with Ultra-high-speed linear encoder reading and built-in EAD (absolute scale decoder) allow AR series system to use our AS-80 high precision absolute scale, providing high accuracy and high resolution measurement.
2D / 3D Multiple Measurement
Easson three series of vision measuring machines can cooperate with the UK Renishaw high-precision touch probe for 2D / 3D multiple measurement. The 3D measurement of the probe can be mixed with the 2D measurement of the imaging system. The same coordinate system is used for 2D / 3D measurement in perfect and easy combination.
FAQs
1. What is your company mainly produce?
Easson is a manufacturer in design and manufacturing precision measuring equipment, eg. CNC Vision Measuring Machines, Optical Profile Projector, Digital Readout System(DRO), CNC Linear encoder glass scale.
2. How can we guarantee quality?
We are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning, also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.
3. How can the machine achieve the high accuracy measurement?
4. Warranty:
We provide 13 months( from the date of shipment ) warranty.
5. Technical support:
we have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.
6. Payment:
Default is 100% T/Tpayment before shipment, if you need other request for the payment terms, welcome to contact us.
