20nm Exposed Linear Encoders

Output Signal: DTTL Meas. Travel: 50 - 3000 Mm
Resolution: 0.02 µm Accuracy: ±3 μm / ±5 μm In 500 Mm
Material: ABS Plastic Power Supply: DC 5V
High Light:

DTTL Exposed Linear Encoders


20nm Glass Exposed Linear Encoders


20nm easson linear scale


High Speed 20 Nano Meter Optical Reflective Exposed Grating Measuring Linear scale


Product Specification

  GS 65
Meas. Standard 80 μm (0.08 mm) pitch grating glass
Meas. System Reflective Phased Array Optics System
Reader Carriage Non-Contact open grating carriage
Resolution 0.02 μm ( 20 nanometer )
Meas. Travel 120 mm G1: Standard length: 120 mm, user cut on demand
500 mm G2: Standard length: 500 mm, user cut on demand
1000 mm G2: Standard length: 1000 mm, user cut on demand
1200 - 3000 mm G3: Every 200 mm per specification
Accuracy 50 - 500 mm ±3 μm / ±5 μm
550 - 1000 mm ±5 μm / ±10 μm
1200 - 3000 mm ±10 μm / m
Hysteresis Included in accuracy
Max. Speed 180 m / min
Power Supply DC 5V ± 5%
Output Signal CPE-bus
Output Connector DSUB 9


GS65 High Accuracy Reflective Open Grating Scale

20nm  Exposed Linear Encoders 0

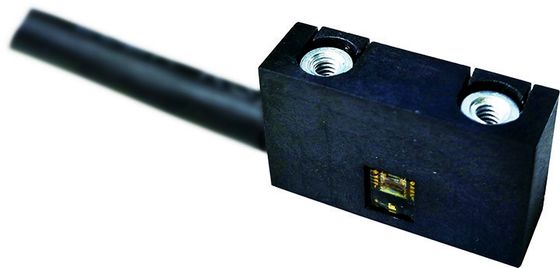

GS65 is designed for high speed & high accuracy applications, i.e. Metrology equipment,  vision measuring machines,  length measuring machine, PCB drilling machine, coordinate measuring machine, linear motors ...  etc. GS65's unique non-contact compensated Phased Array refelective open grating measuring system offers high precision backlish free position readings.


Product Features


  •  Phased Array Grating Measurement System
  •  Readout Resolution : 0.02 μm ( 20 namo meter)
  •  Measurement Speed : 180 m / min
  •  Acceleration : 4 G
  • Achieve the highest possible measuring repeatability that your mechanical structure is designed and built
  • Low speed high precision counting servo movement control.


20nm  Exposed Linear Encoders 1


Three accuracy grade in GS65:  ±3 μm, ±5 μm, ±10 μm


Installation Dimensions

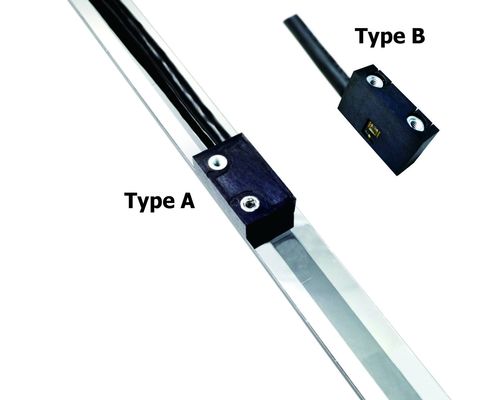

Thanks to the small reader head size, this makes your scale installation very easy and convenience. More than that, there are two types of installation direction fixing of reader head housing available for your choice.




20nm  Exposed Linear Encoders 2




20nm  Exposed Linear Encoders 3



Open Grating Glass Dimension


20nm  Exposed Linear Encoders 4


Glass Dimension High(mm) Thick(mm) Meas. Travel(mm)
G1 6.2 1.0 120
G2 12 2.0 500 / 1000
G3 12 3.0 1200 - 3000


Three dimension glass we can provide: they are 6.2mm x 1 mm glass, 12 mm x 2 mm glass, and 12 mm x 3 mm glass.



Connector interface



20nm  Exposed Linear Encoders 5

Signal Cable
1 A- Yellow
2 0V White
3 B- Red
4 GND Silver
5 R- Black
6 A Green
7 5V Brown
8 B Blue
9 R Grey
