Product Details:
|
| Measuring Range: | 250 X 150 X 90mm | Optical Lens: | 10X, 20X, 50X |
|---|---|---|---|
| Accuracy: | ( 3+ L/100) μm | Display Resolution: | 1μm |
| Power Supply: | AC 220V | Angular Resolution: | 0.01 |
| Highlight: | EP2515 Horizontal Profile Projector,Easson Horizontal Profile Projector,EP2515 Horizontal Optical Comparators |
||

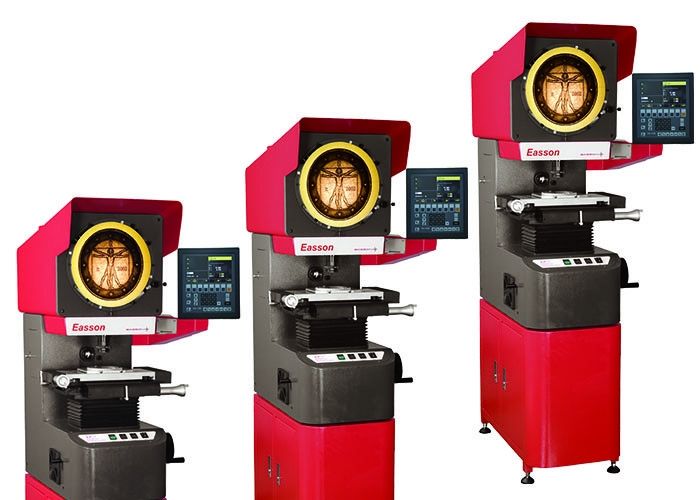

EP series Optical Profile Projector
Optical Profile projector EP-2515 is precision and effective measuring machine in screw, Mechanic, Metal, Electronic etc.
EP series high precision optical profile projector provides accurate 2D measurement for all common geometric features such as circle, line angle and etc. All measured results can be printed out for further data processing.
EP series optical profile projector is designed for all critical dimensions measurement in mould & die making, form tool making, screw manufacturing, gear manufacturing and etc.
ES-12P Digital Readout System is specially designed for 2D measuring, which can be used on profile projector, 2D measuring machines or microscopes etc...
Robust friction transmission system
To avoid the usual backlash problem of normal lead screw transmission system, rod base friction transmission system are used in the XY movements. This solution provides excellently smooth, sensitive and backlash free positioning that assure easy and precise measurements.
High precision linear guideway
High precision linear guideways are used in all X, Y and Z axis movements. This design provides very high straghtness movements and consequently, high measurement accuracy.
High stability machine casting
To avoid deformation caused by the internal stress of the metal casting, in addition to the usual internal stress release process ( by tempering ), all EP-1 casting are further stress released by a computer controlled vibration stress release. This process assure high dimensional stability and long lasting measuring accuracy.
Technical Specifications
| Model | EP-1510 | EP-2010 | EP-2515 |
| Table dimension | 300x170mm | 350x170mm | 420x250mm |
| Glass dimension | 175x127mm | 225x120mm | 290x190mm |
| X Axis travel | 150mm | 200mm | 250mm |
| Y Axis travel | 100mm | 100mm | 150mm |
| Z Axis travel(Focusing) | 90mm | ||
| X, Y axis display resolution | 0.001mm | ||
| Accuracy | (3+L/100)um | ||
| Angular measurement | 0 ~ 360° | ||
| Angular resolution | 0.01° | ||
| Contour distortion | 0.08% | ||
| Screen diamater | 315 mm | 415 mm | |
| lens magnification | 10X, 20X, 50X,one choice | ||
| Digital readout | ES - 12B | ||
