Product Details:
|
| Measuring Range: | X200 X Y100 X Z90mm | Accuracy: | ( 3+ L/100) μm |
|---|---|---|---|
| Optical Lens: | 10X, 20X, 50X | Display Resolution: | 1μm |
| Power Supply: | AC 220V | Angular Resolution: | 0.01 |
| Highlight: | automated optical comparator,EP2010 portable optical comparator,EP2010 mechanical optical comparator |
||

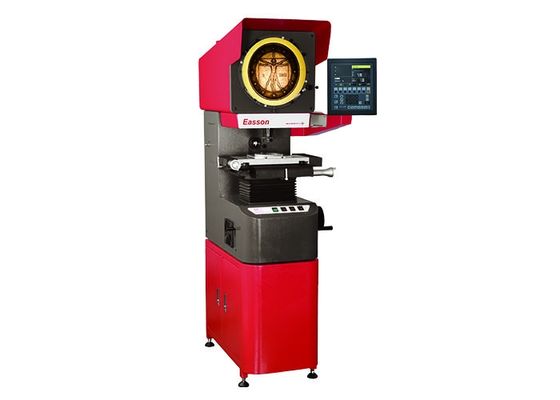

EP2010 High Accuracy Digital Optical Horizontal Profile Projector
Packaging & Delivery
Package Type: 930x730x1400mm, 150kgs ;
810x490x720mm, 51kgs
450x410x260mm, 13 kgs;
packed in plywood case.
Port of Delivery: Zhuhai Hongwan port, Hong Kong port,
NANSHA port
Product Description
EP series Optical Profile Projector
Applications:
it is widely used in screw, metal plate, molds, tools, instruments, electronics, light industry for testing measurement equipment.
Robust friction transmission system
To avoid the usual backlash problem of normal lead screw transmission system, rod base friction transmission system are used in the XY movements. This solution provides excellently smooth, sensitive and backlash free positioning that assure easy and precise measurements.
High precision linear guideway
high precision linear guideways are used in all X, Y and Z axis movements. This design provides very high straghtness movements and consequently, high measurement accuracy.
High stability machine casting
To avoid deformation caused by the internal stress of the metal casting, in addition to the usual internal stress release process ( by tempering ), all EP-1 casting are further stress released by a computer controlled vibration stress release. This process assure high dimensional stability and long lasting measuring accuracy.
EP-1 Profile projector Accessories
Technical Specifications
| Model | EP-1510 | EP-2010 | EP-2515 |
| Table dimension | 300x170mm | 350x170mm | 420x250mm |
| Glass dimension | 175x127mm | 225x120mm | 290x190mm |
| X Axis travel | 150mm | 200mm | 250mm |
| Y Axis travel | 100mm | 100mm | 150mm |
| Z Axis travel(Focusing) | 90mm | ||
| X, Y axis display resolution | 0.001mm | ||
| Accuracy | (3+L/100)um | ||
| Angular measurement | 0 ~ 360° | ||
| Angular resolution | 0.01° | ||
| Contour distortion | 0.08% | ||
| Screen diamater | 315 mm | 415 mm | |
| lens magnification | 10X, 20X, 50X,one choice | ||
| Digital readout | ES - 12B | ||
Packing List
| Lines | Description | Qty | Notes |
| 1 | Machine body | 1 | |
| 2 | 10X, 20X or 50 Objective Lens | 1 | Standard objective lens can only choose one magnification |
| 3 | Transportation Handle | 4 | |
| 4 | Levering Foot | 4 | |
| 5 | Counter | 1 | |
| 6 | Counter supports | 1 | |
| 7 | Micro printer | 1 | |
| 8 | Projector Cables | 1 | |
| 9 | User Manual, quality certificate, projector list | 1 | |
| 10 | Spare Lamp | 2 | Osram |
| 11 | Rotary Table and 4 screws | 1 | |
| 12 | concentric circle Films | 1 | |
| 13 | Tool box | 1 | |
| 14 | Machine cover | 1 | |
| 15 | VA14 linear scale | 2 | |
| 16 | Filtering | 8 |
FAQs
1. Who we are?
Easson is a manufacturer in design and manufacturing precision measuring equipment, eg. CNC Vision Measurement Systems, Optical Profile Projector, Digital Readout System(DRO), CNC Linear encoder glass scale.
2. How can we guarantee quality?
We are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning, also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.
3. Warranty:
All the products we provide 13 months( from the date of shipment )
4. Technical support:
we have a professional technical support team for the after sales services system. If you have any technical problem please don't hesitate to contact us.
5. Payment:
Default is 100% T/Tpayment before shipment, if you need other request for the payment terms, welcome to contact us.
